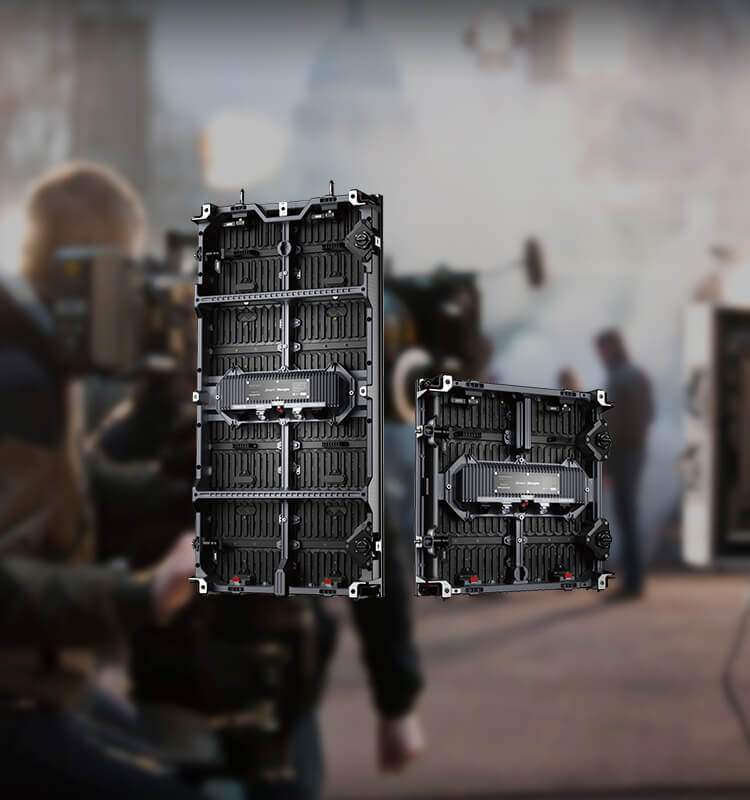

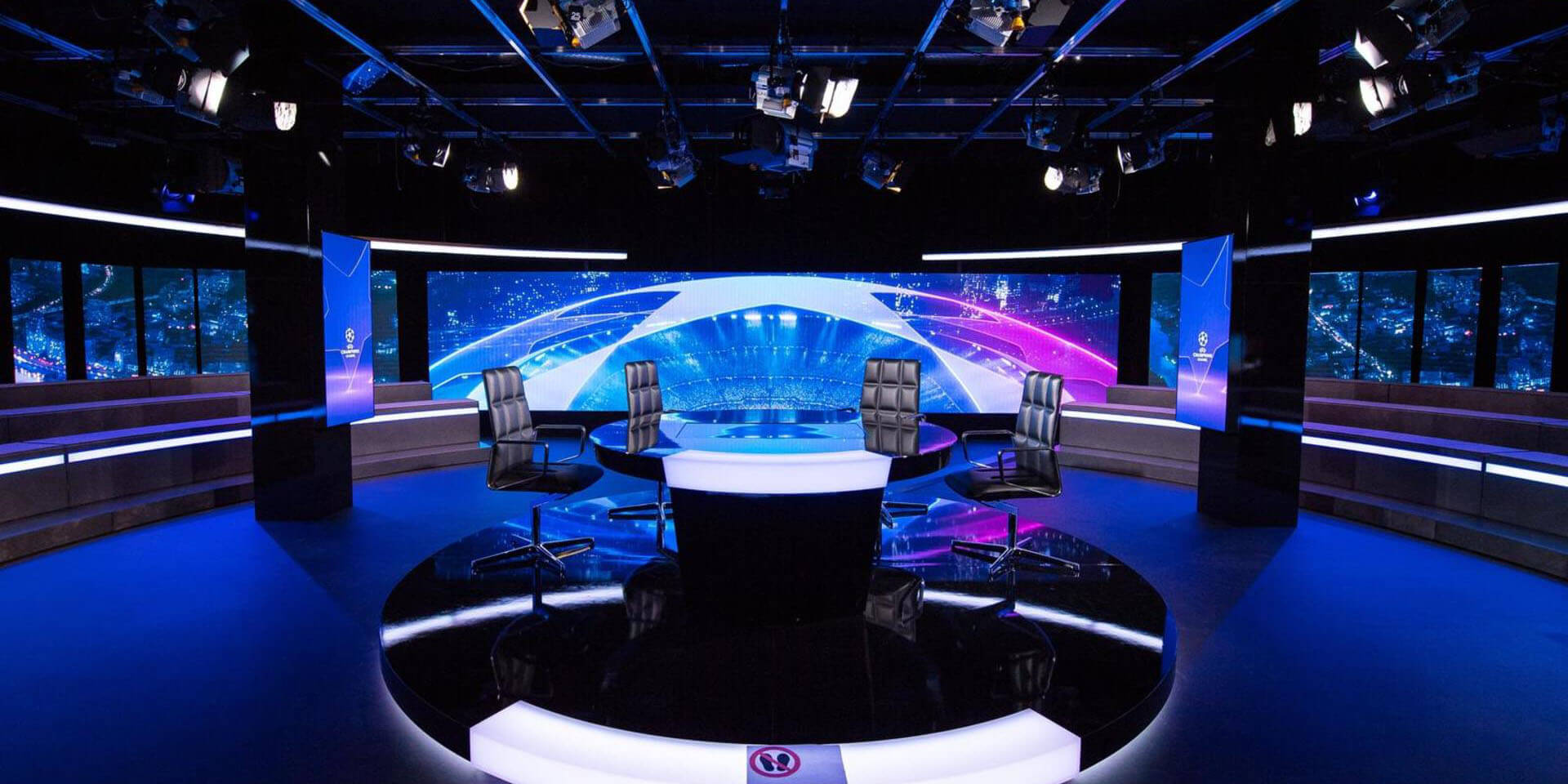

Zonepro’s Quatro XR has been specifically developed for use in Film & Television industries as well as extended reality applications. The XR panel offers trusted reliable performance with sophisticat-ed & high-speed components such as wide color gamut LEDs,high speed & high grayscale IC drivers and broadcast standard processing.
Download Catalog
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team
Super visual

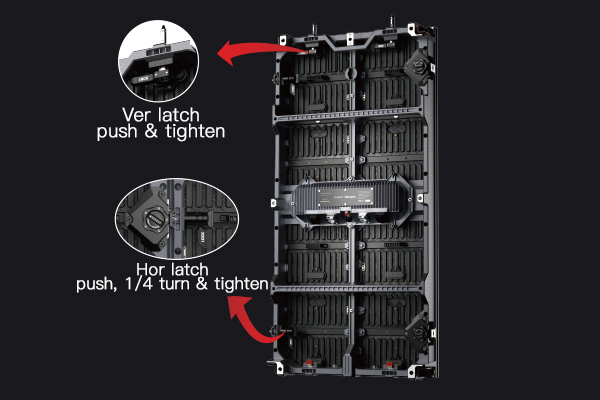

Smart latch

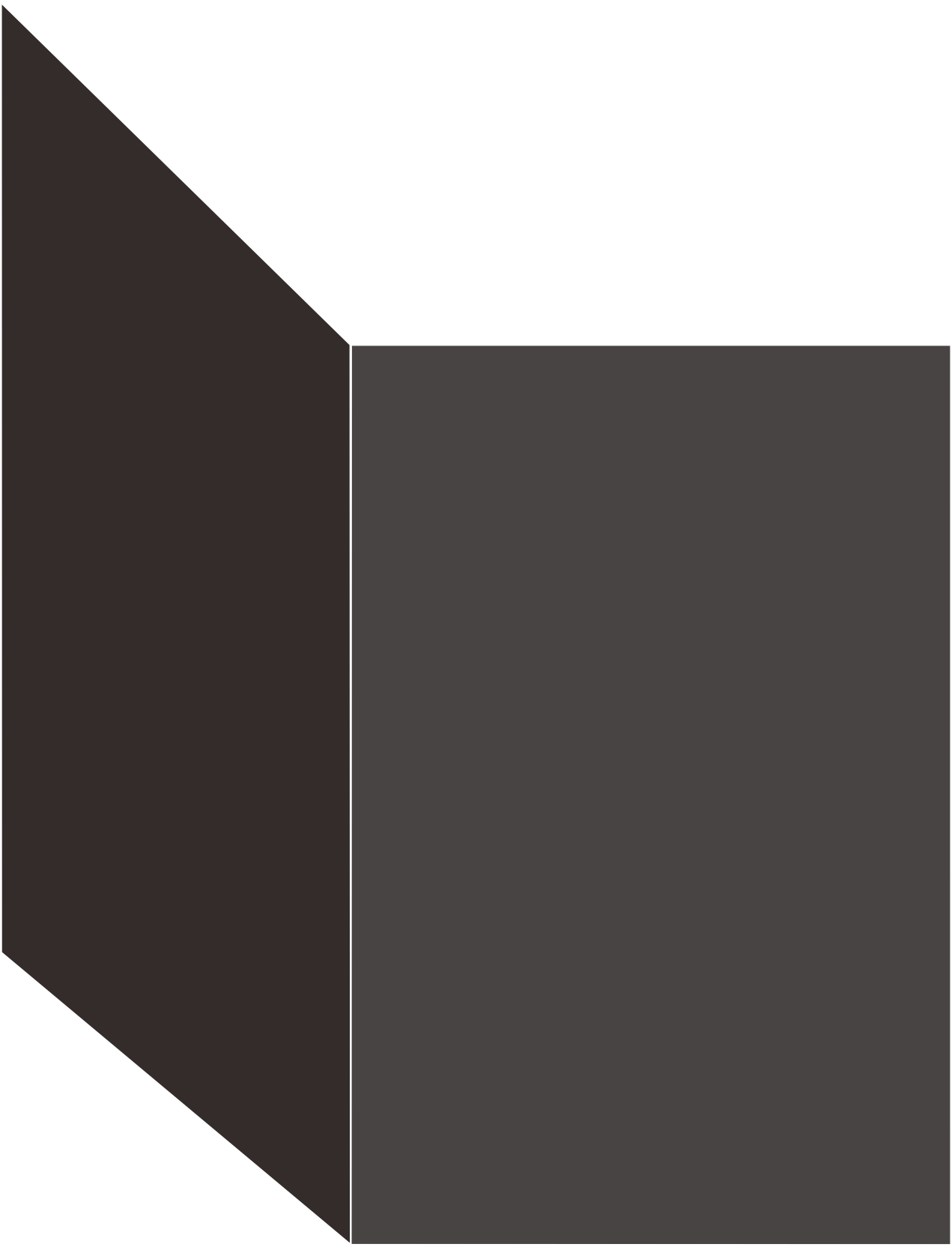

Curveable
Modular & easy maintenance
Max 7680Hz
Creative application
Smart fly&stack Bar
Ease truss
Max 16 bits
The Magnesium panel stays at a relatively low weight 12kg each. The chassis has been strength tested to staggering 1.9 tons. This is equal to hanging over 158m, the height of a 42-story sky-scraper. Using a safety factor of 6, 26m of Quatro can safely hang vertically & seamlessly. Quatro's smart latch & self-assisted system allow one person to complete a full assembling work.

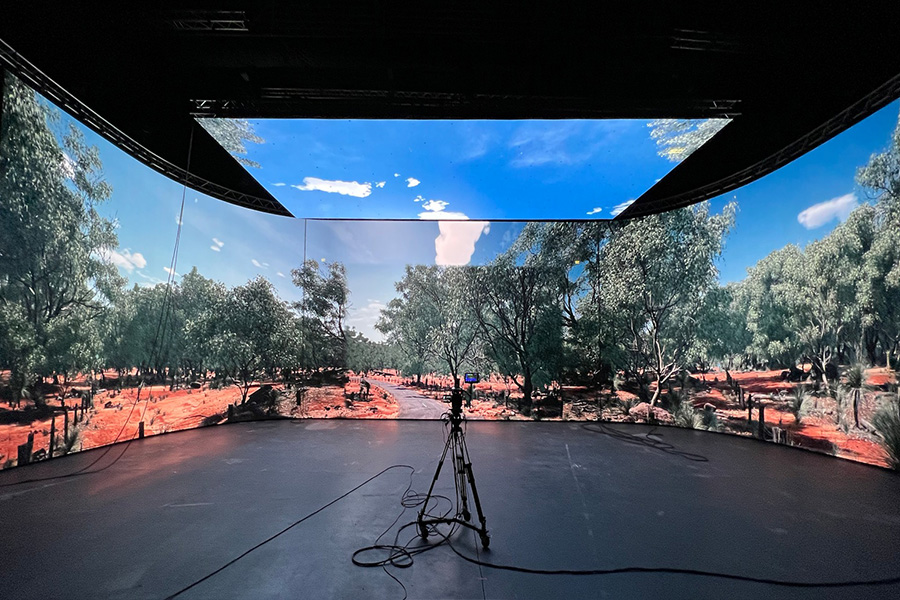

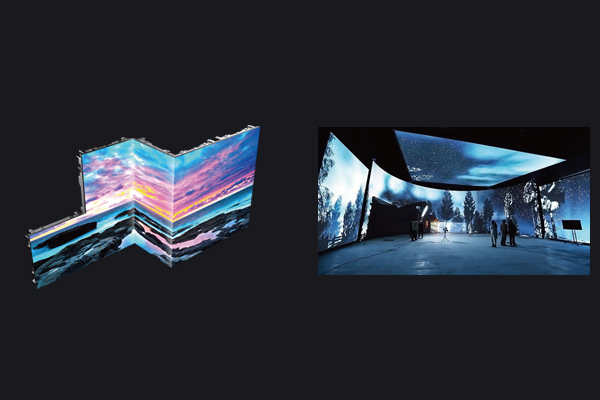

Quatro allows you to realize many creative solutions.In addition to standard designs, Quatro panels can curve,be ceiling mounted, at right angles, let your imagination be the limitation.

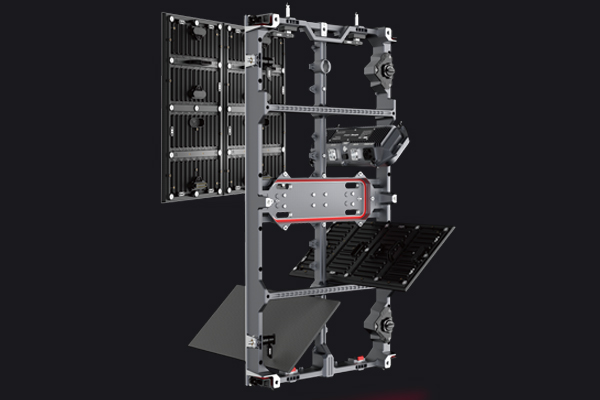

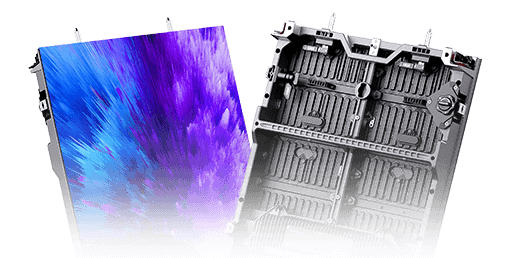

All parts front and rear serviceable.

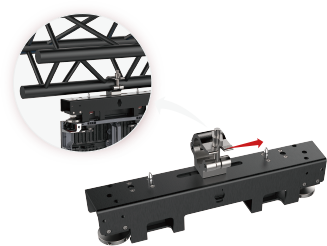

Sideways adjustable rigging clamp assists with truss webbing.
Available for ground stack
| Pixel Pitch(mm) | QT1.5 | QT2.6 | QT2.9 | QT3.4 |
| LED Configuration | SMD1212(GOB) | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density(pixels/㎡ ) | 40,9600 | 147,456 | 112,896 | 82, 944 |
| Brightness(cd/㎡) | ≥1000 | |||

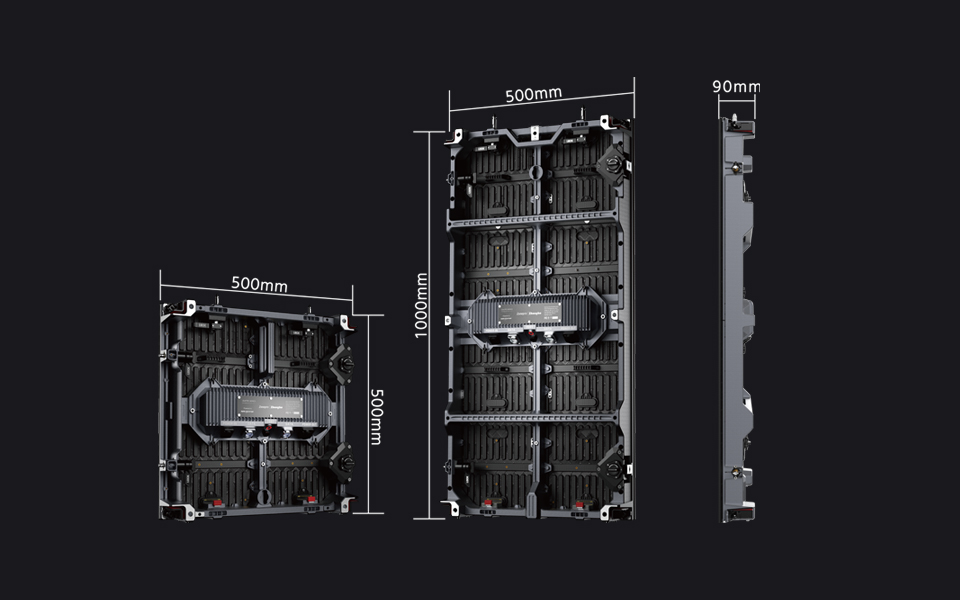

| Module Size(W x H mm) | 250x250 | 250x500 | ||
| Panel Size (W x H mm) | 500x500 | 500x1000 | ||
| Module Resolution (pixels) | 320x320 | 192×384 | 168×336 | 144×288 |
| Panel Weight (kg/pc) | 9kg | 12kg | ||
| Cabinet Materials | Diecast Magnesium | |||
| Curveable | -6°, -3°, 0° | -6°, -3°, 0°,+3°,+6° | ||
| Power Consumption(Max/Avg) W/㎡ | 420 /140 | |||
| Ingress Progress | IP30 | |||
| Refresh Rate | 7680Hz | |||
| Gray Scale | ≤16 bits | |||
| Frame Frequency | 236Hz | |||
| Scan Ratio | 1/20 | 1/16 | 1/14 | 1/12 |
