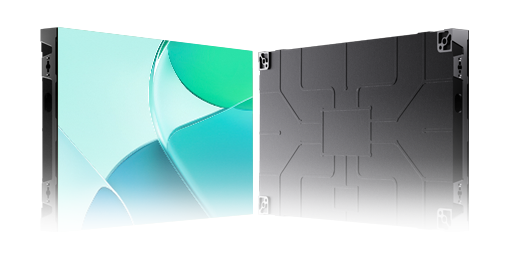

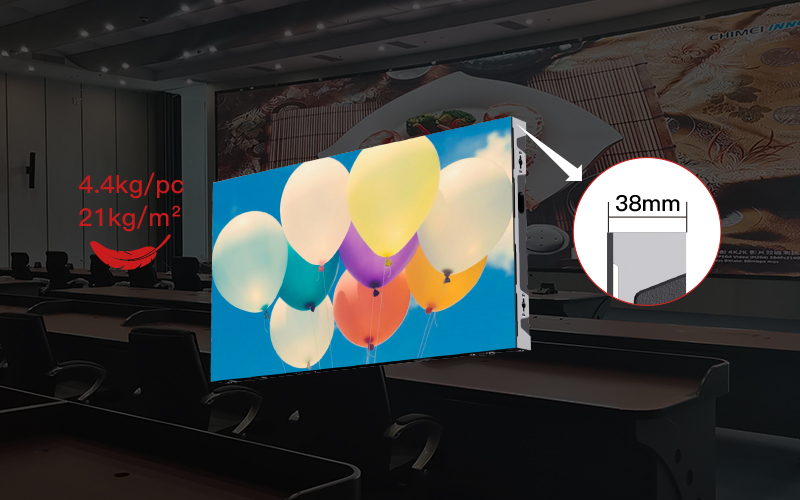

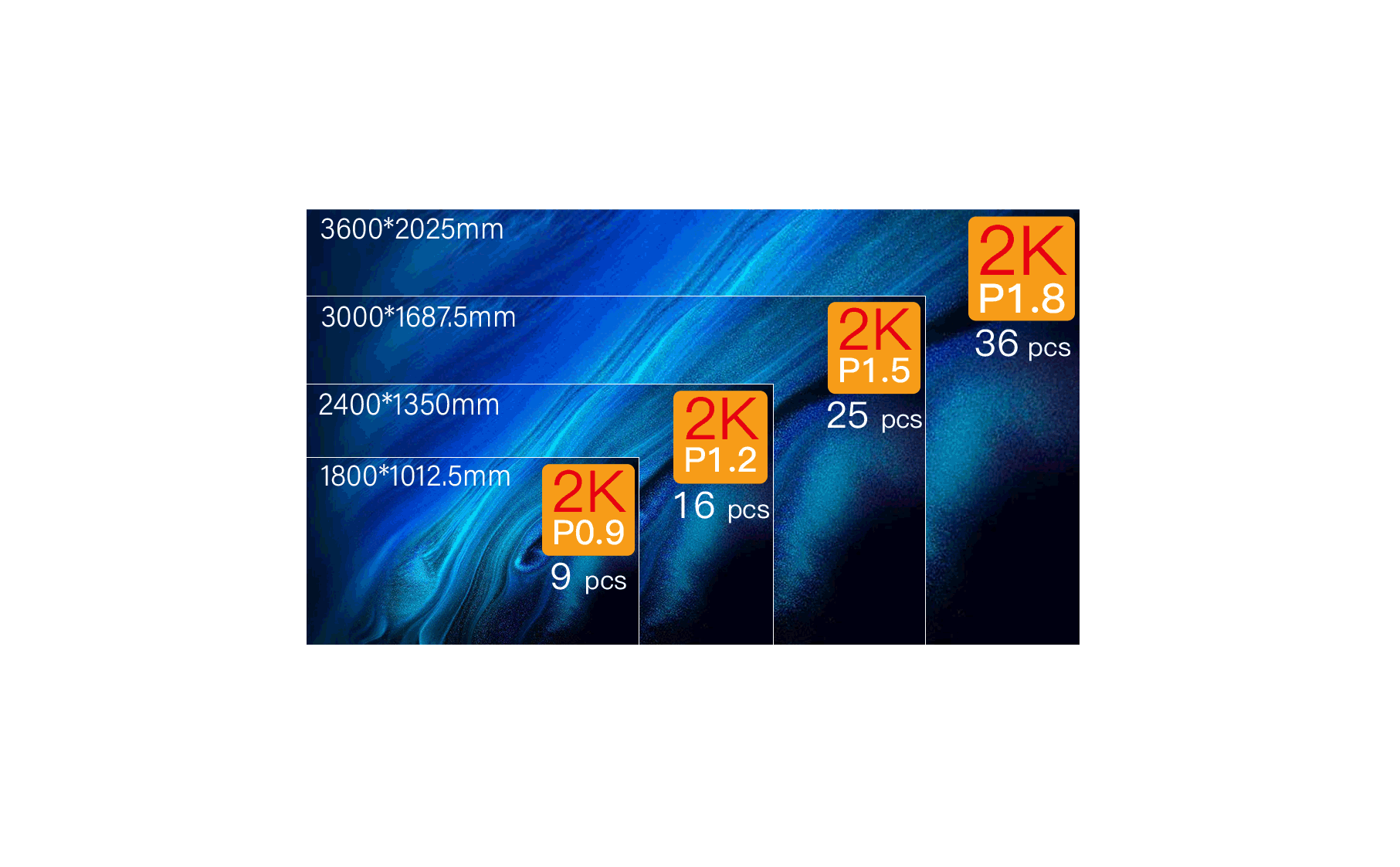

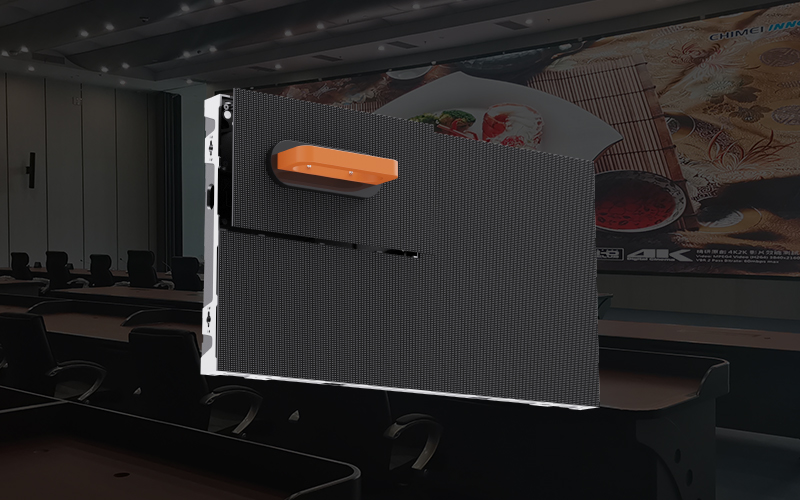

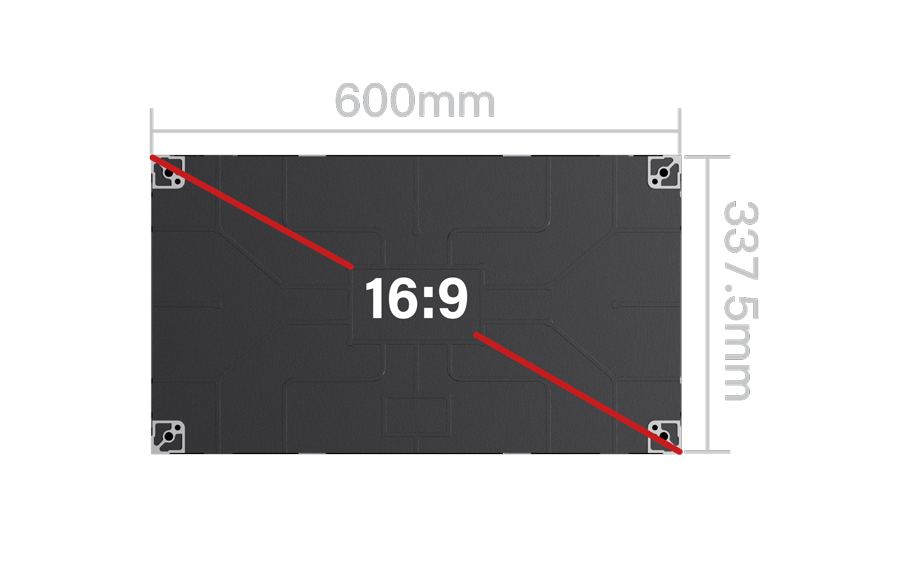

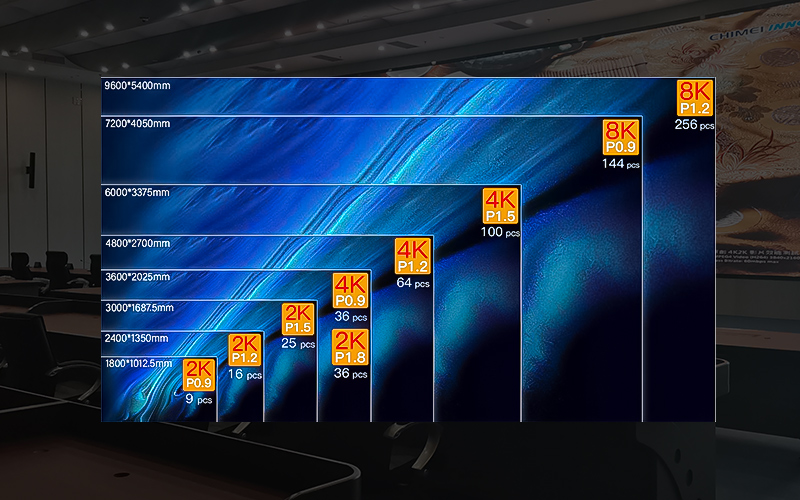

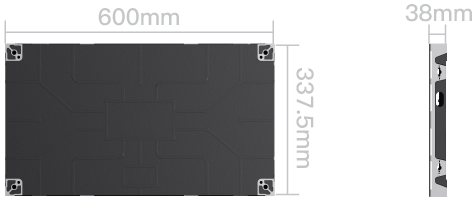

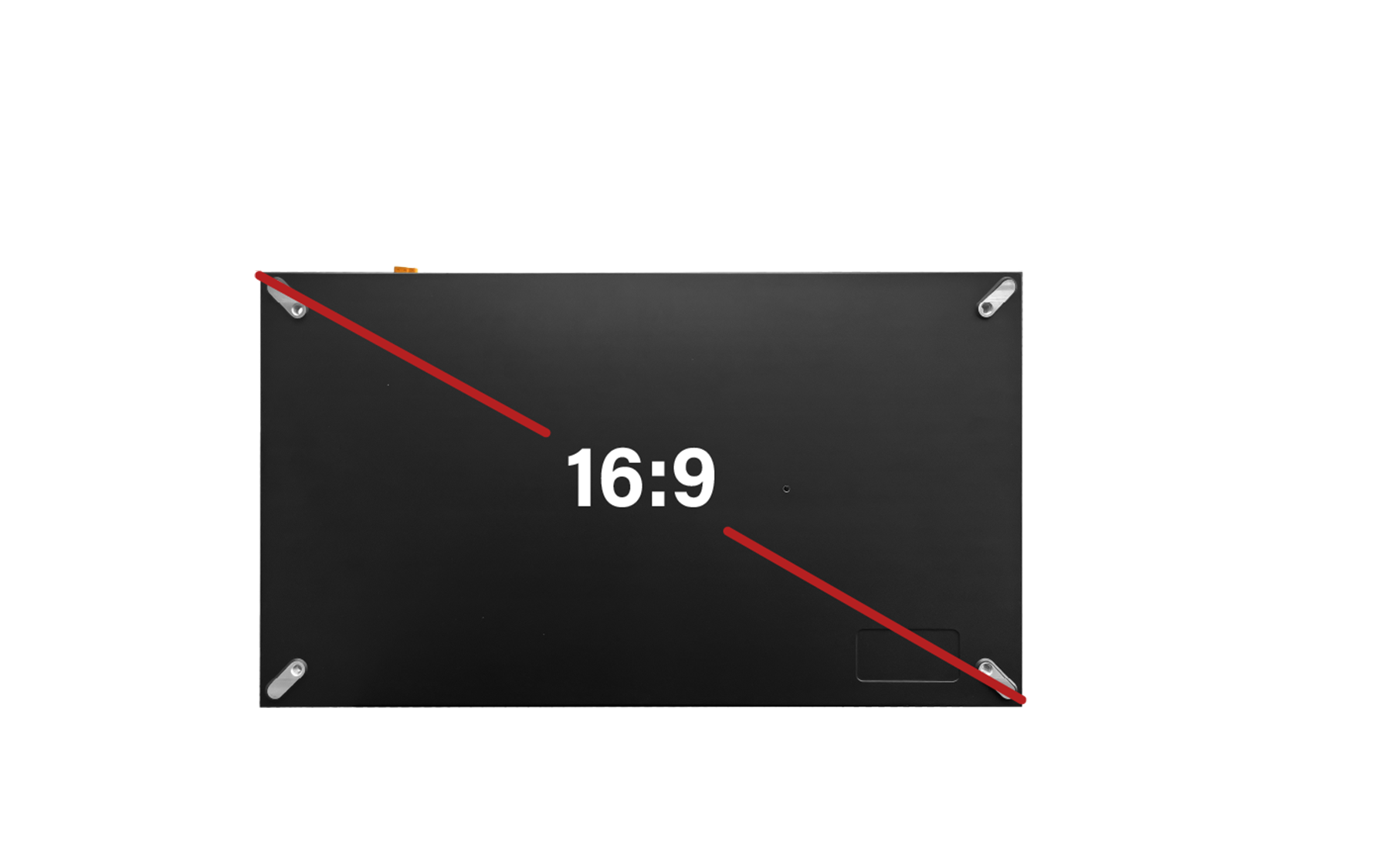

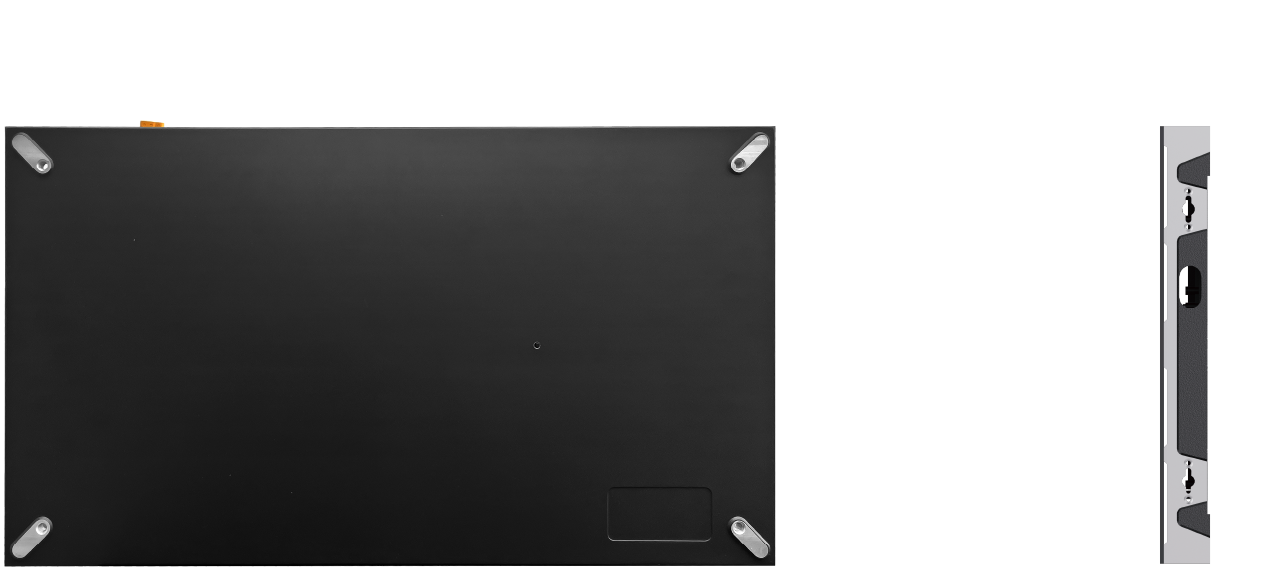

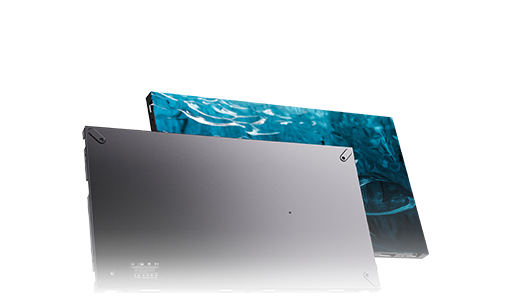

videoPad is a fine-pitch 16:9 panel.Its panel size is 600*337.5mm that has a 16:9 aspect ratio, more flexible to fit 2K,4K or 8K video wall.It weights only 4.4 kg/pcs and thickness is only 38mm.videoPad can bring unparalleled visual experience for your indoor led video wall.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.

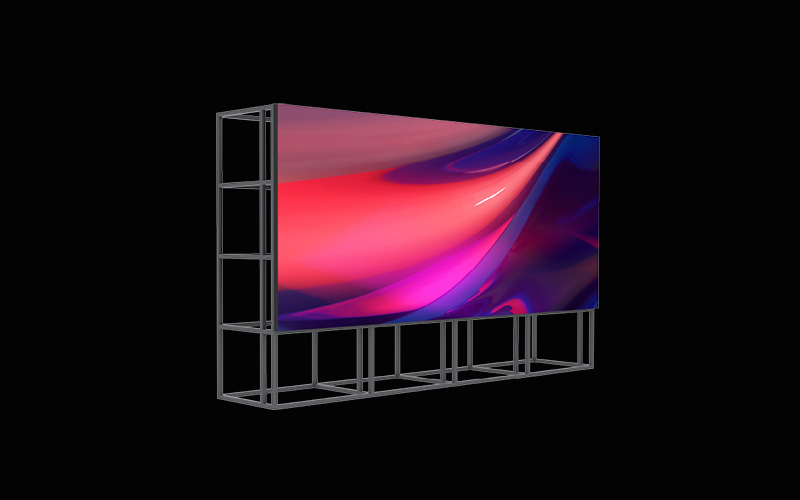

fixed onto framework via joint plate

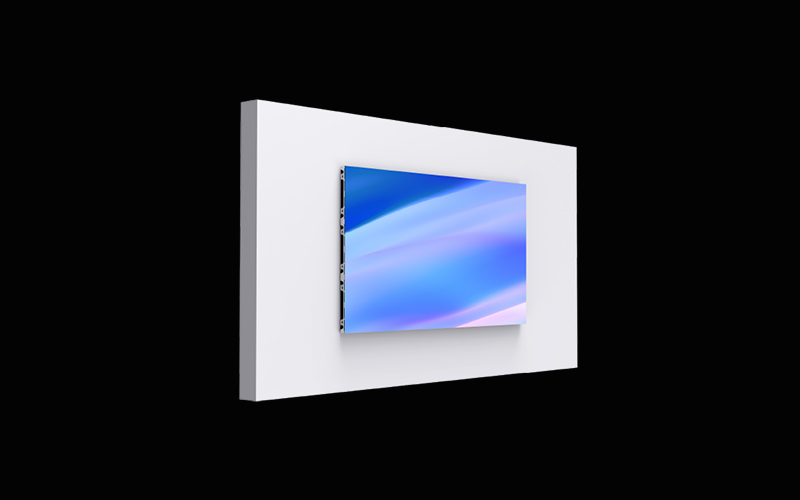

wallmount (direct or bracket assisted)

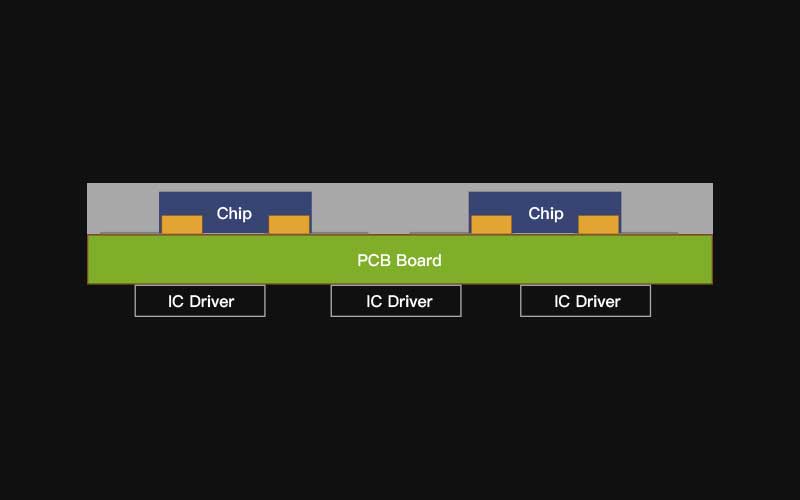

Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 14 bits or even 16 bits, then the screen is able to perform as rich details as what the content has.

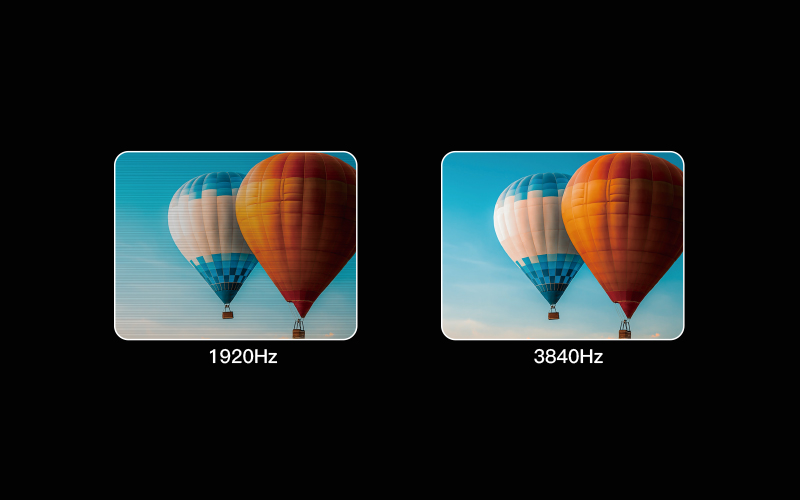

Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 3840Hz, then the screen is able to perform best smooth

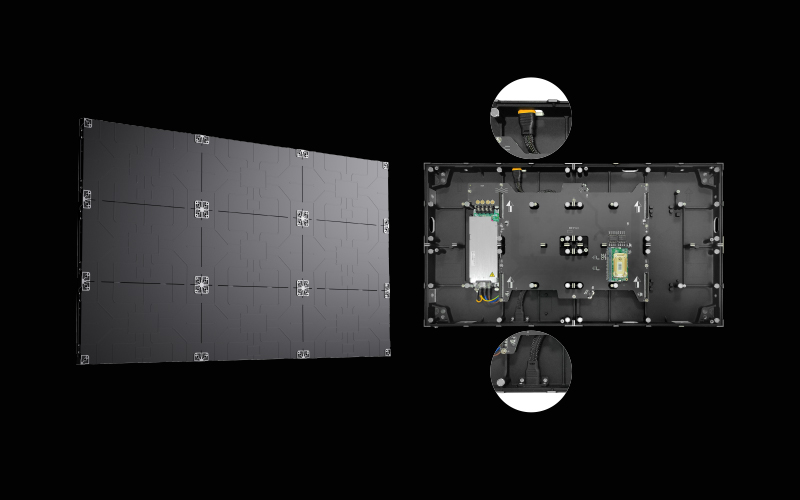

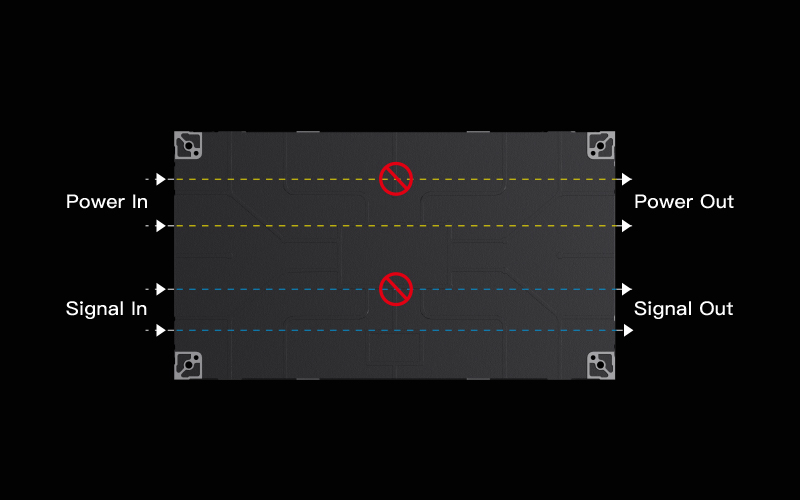

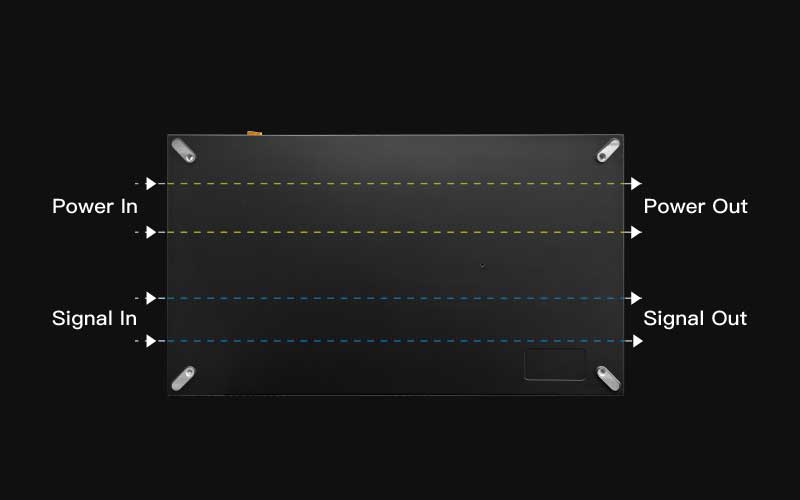

Power and data redundancy to provide highly reliability.
|Pixel Pitch (mm)||0.9375||1.25||1.5625||1.875|

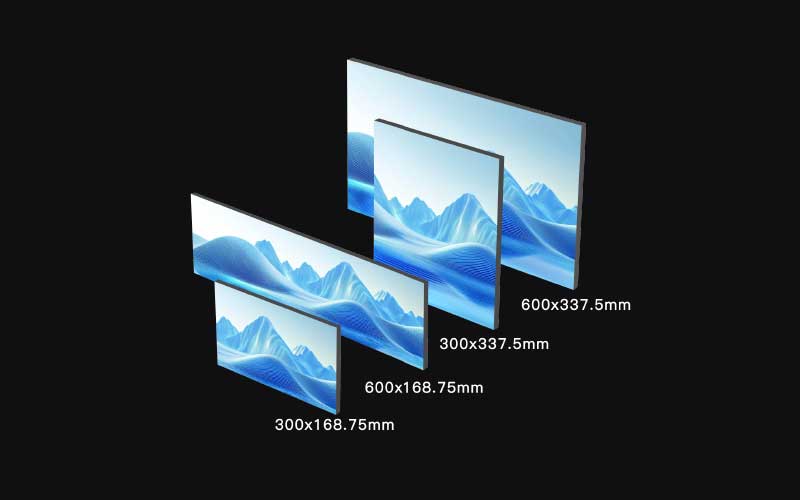

|Module Size (WxH)||300x168.75||300x168.75||300x168.75||300x168.75|
|Pixel Density (pixels/m²)||1,137,777||640,000||409,600||284,445|
|Cabinet Size (WxH)||600x337.5x38||600*337.5*38||600*337.5*38||600*337.5*38|
|Cabinet Weight (kg/pc)||4.4||4.4||4.4||4.4|
|Cabinet Material||Die cast aluminum|
|Refresh Rate (Hz)||3840||3840||3840||3840|
|View Angle (H./V.)||160° / 160°||160° / 160°||160° / 160°||160° / 160°|
|Max. Power Consumption||600W/m²||600W/m²||600W/m²||600W/m²|
|Avg. Power Consumption||200W/m²||200W/m²||200W/m²||200W/m²|
1250㎡ P1.8/3/4 indoor led screen in Shanghai Platinum Hanjue Hotel
This is an indoor P1.2 fine pixel pitch led screen by zonepro led
