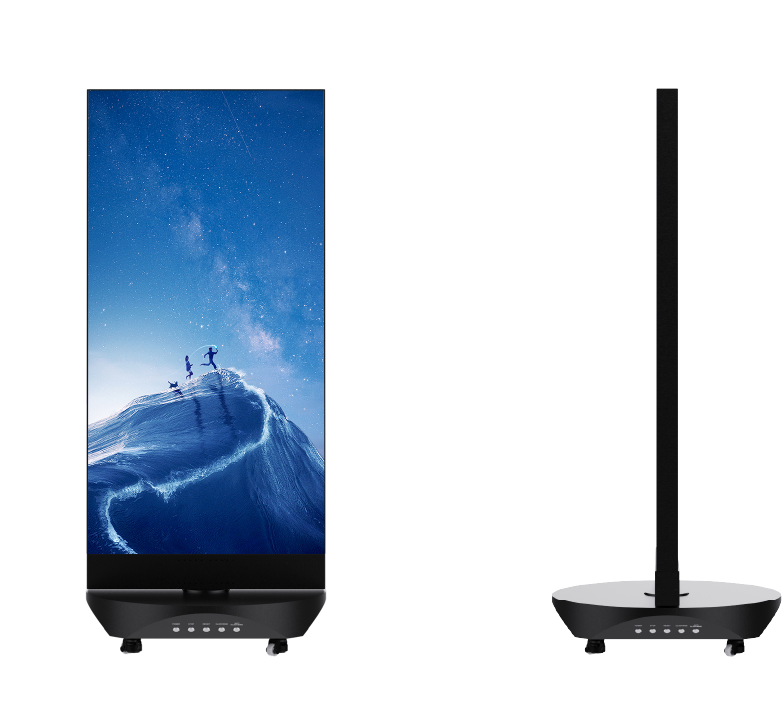

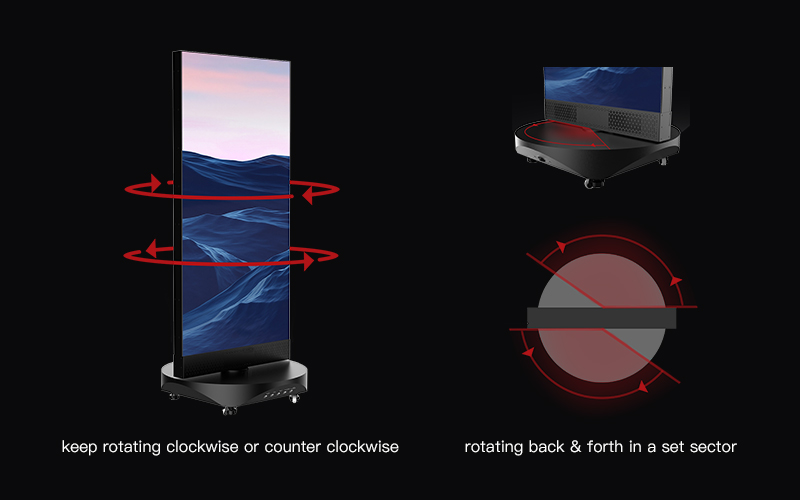

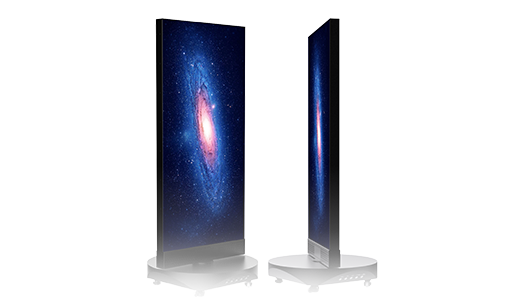

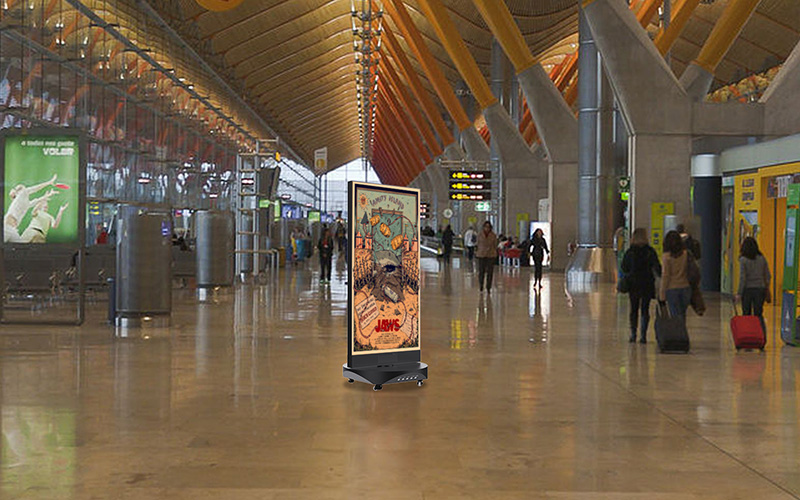

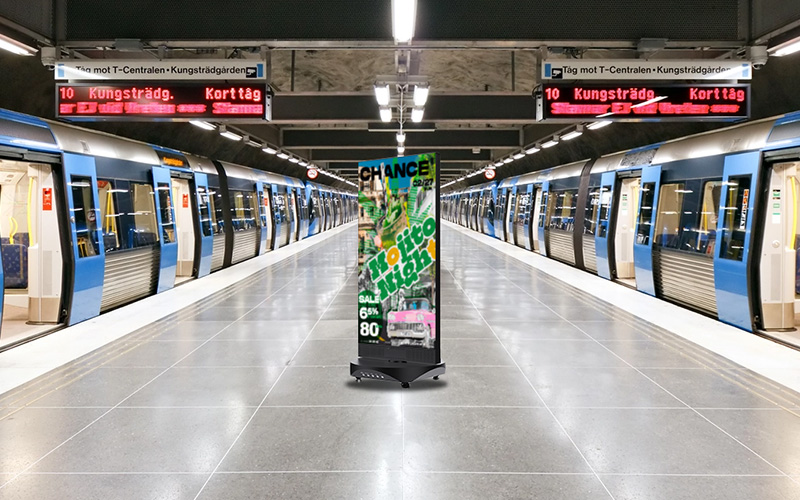

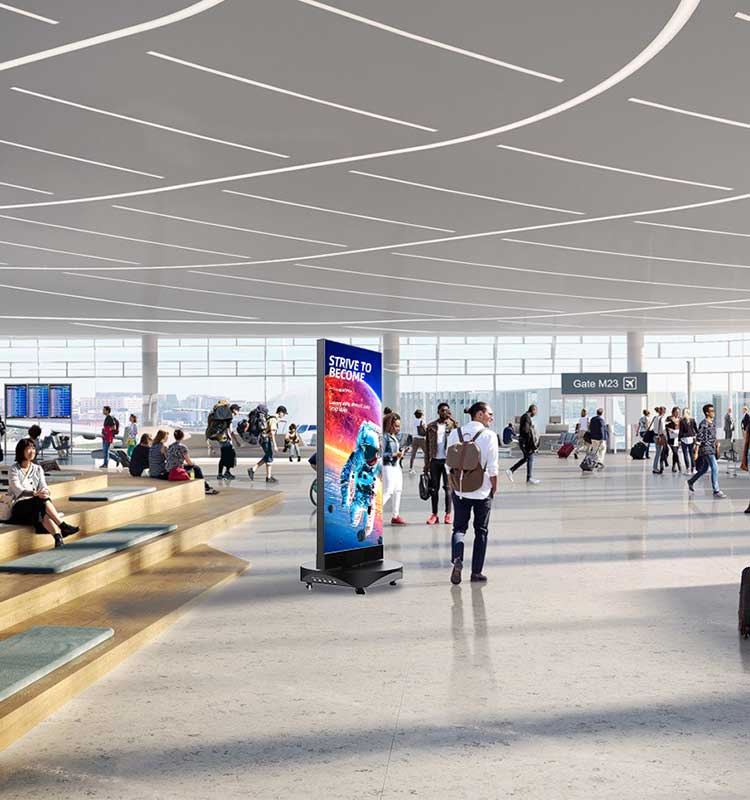

Transformer is ZonePro's new LED Kiosk with both single or double sides. It can rotate 360° clockwise or counter clockwise, or rotate back and forth in a set factor. Contents on screens is conveyed to audiences at any view angles and it improves advertising effectiveness.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

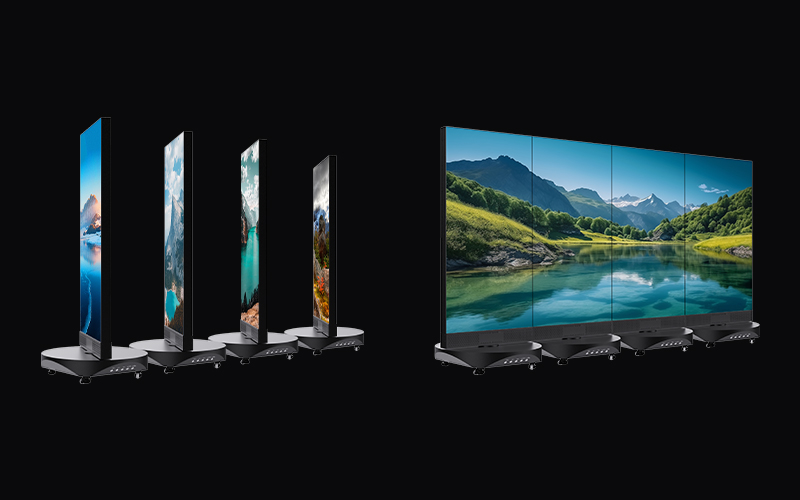

When lining up to one screen or when rotating apart, this screen
displays both a complete (video) or several images (videos)

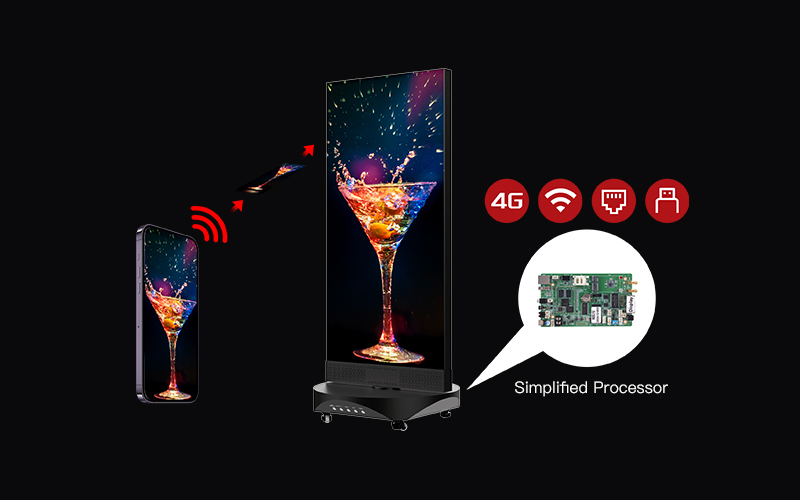

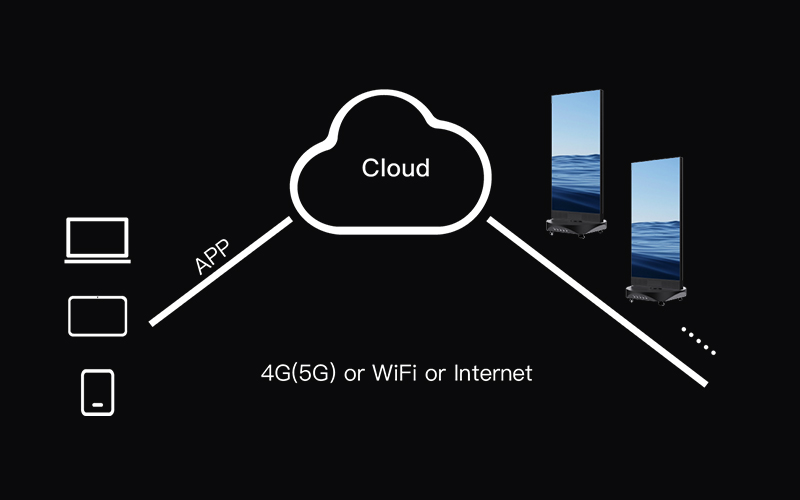

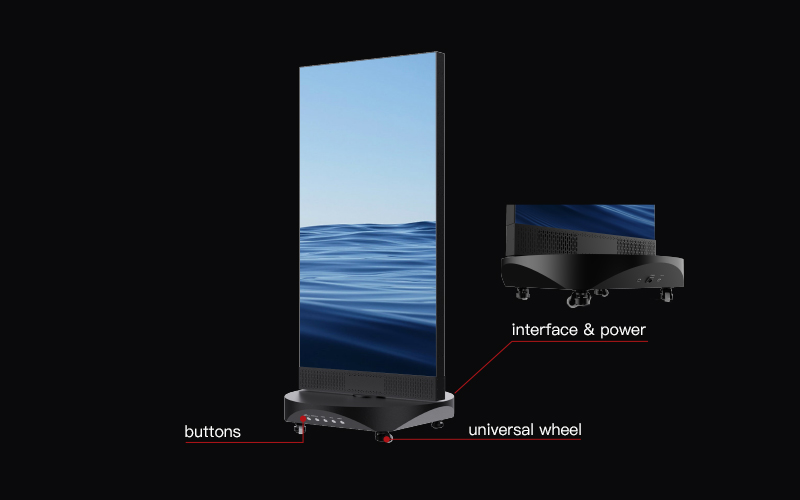

Each is equipped with a media player (combination of single-chip & simplified processor) with accesses of 4G / 5G, WiFi, internet, USB, HDMI... A smart phone can connect to the WiFi with built-in hotspot of the media player and can manage it via an APP.
| Pixel Pitch (mm) | 1.56 | 1.89 | 2.5 | 2.604 | 2.97 | 3.91 |
| LED Configuration | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density (pixels/㎡) | 409,600 | 278,784 | 160,000 | 147,456 | 112,896 | 65,536 |
| Brightness (cd/㎡) | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| Module Size (W x H mm) | 250x250 | |||||
| Resolution | 160x160 | 132x132 | 100x100 | 96x96 | 84x84 | 64x64 |
| Panel Size (W x H mm) | 1000*2000mm or customizable ( W250*n x H250*n ) | |||||
| Panel Weight (kg/㎡) | 130kg | |||||
| Cabinet Material | Aluminum | |||||
| Power Consump (one side) | 280-1300w/㎡ | |||||
| Power Consump (two sides) | 560-2000w/㎡ | |||||
| Refresh Rate | 3840Hz | |||||
