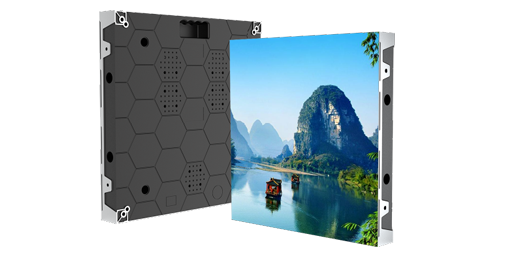

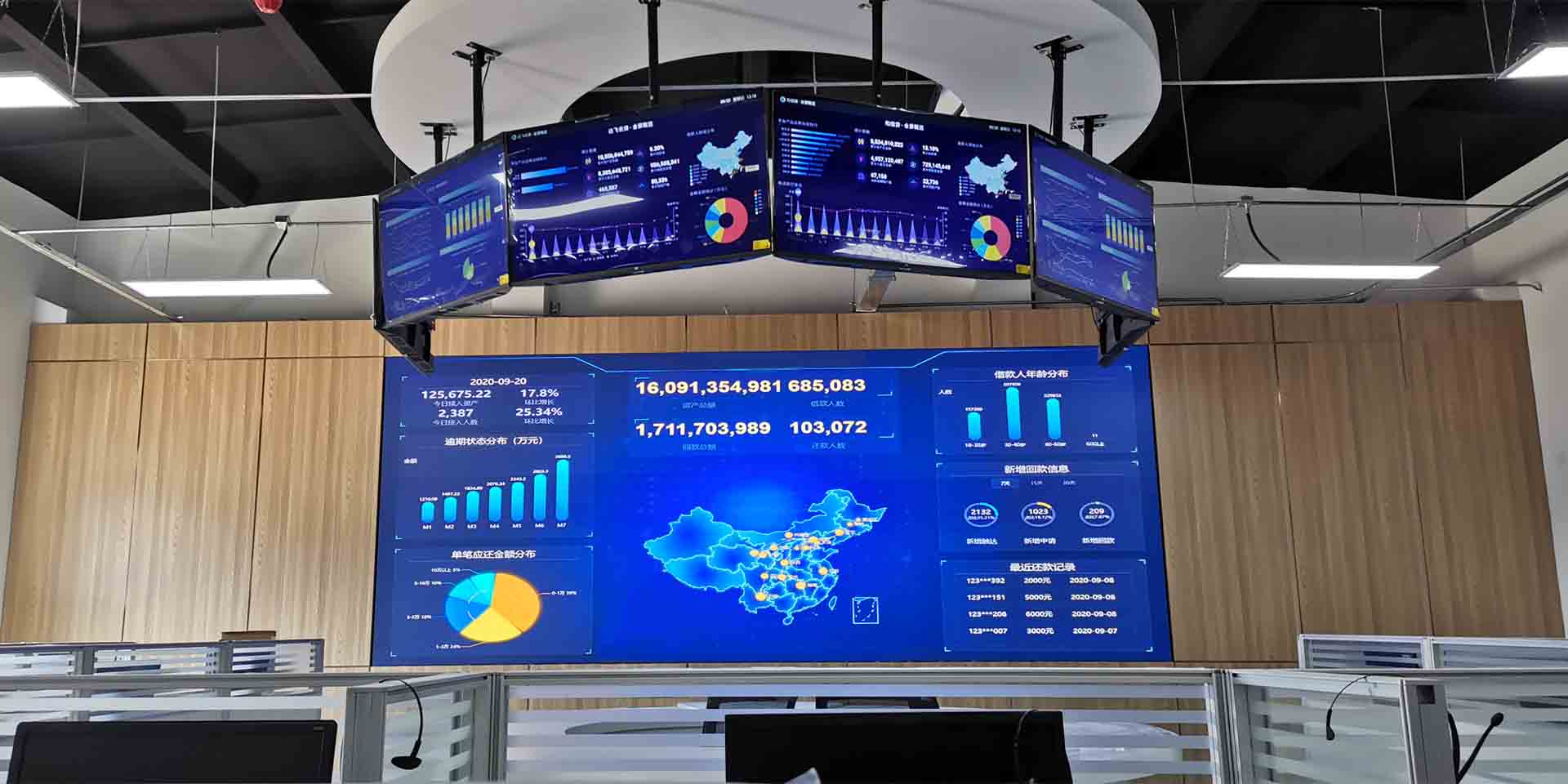

zonePro MUP is a indoor fine pitch led screen. The diecast aluminum panel size is 480mm*480mm ,with super flatness and simple design. It has pixel pitch as P1.29,1.5,1.9 and 2.5, which can be widely used in indoor commercial center, security monitoring center, conference rooms and other application scenarios.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.

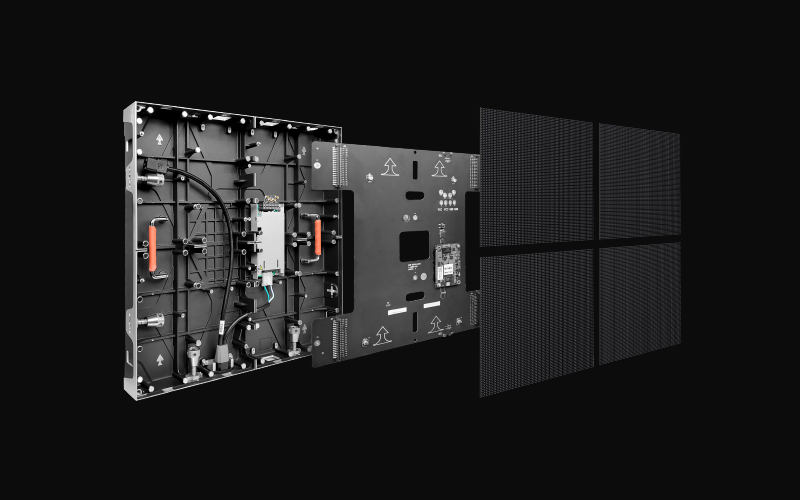

The panel is comprised of module, hub, powersupply & chassis, connections between are direct & simple, signal & power transmission are relialble.

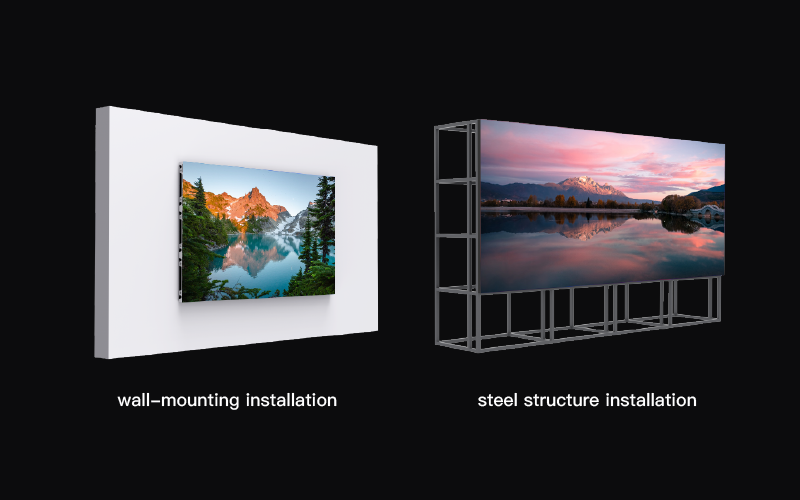

The panel supports both wall-mounting installation and ground-stacking installation.

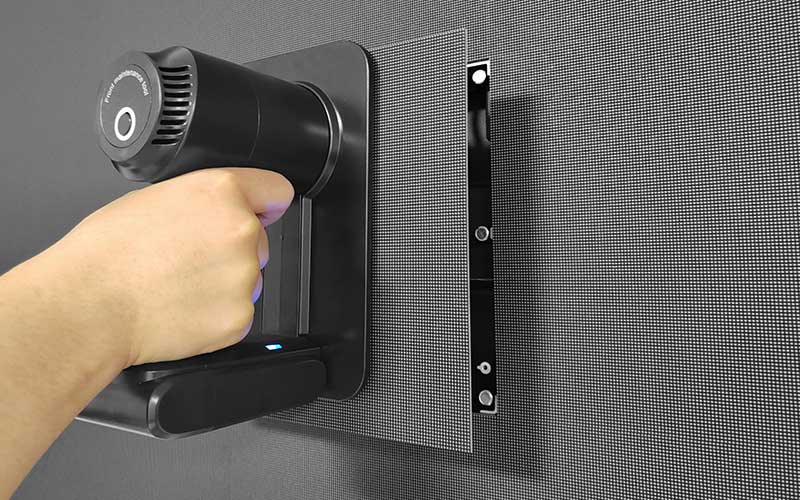

All parts are front accessible
Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 12 bits or even 14 bits, then the screen is able to perform as rich details as what the content has.
Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 1920Hz or even 3840Hz, then the screen is able to perform best smooth.

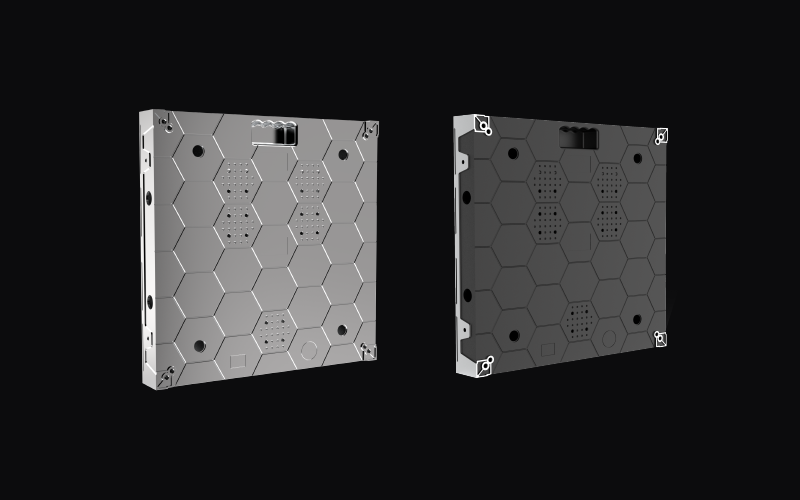

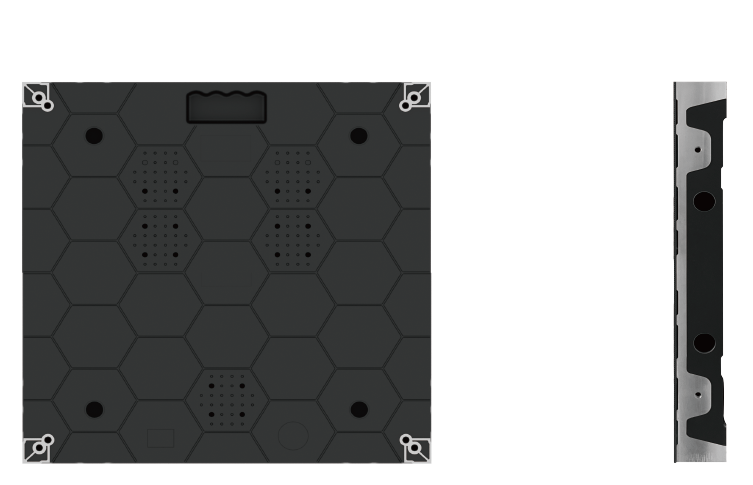

Chassis made of diecast aluminum, with CNC machining.
Modules attach directly with chassis, not with magnets.

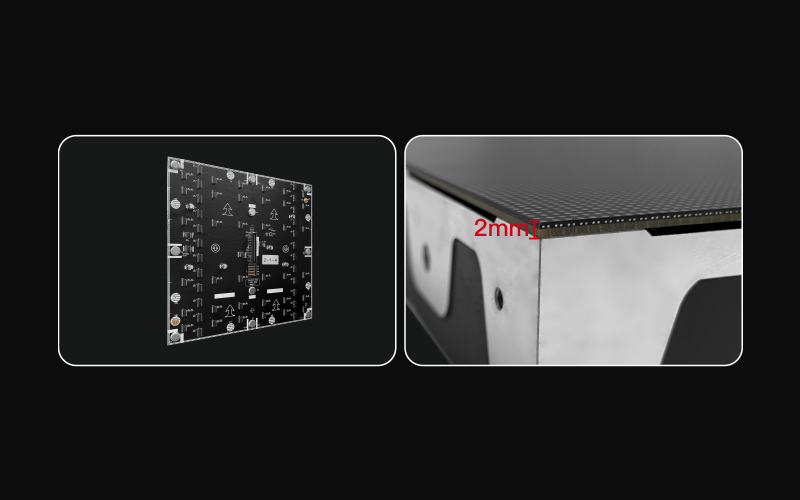

Module without plastic shell, to minimize the accumulated tolerance and to improve precision.

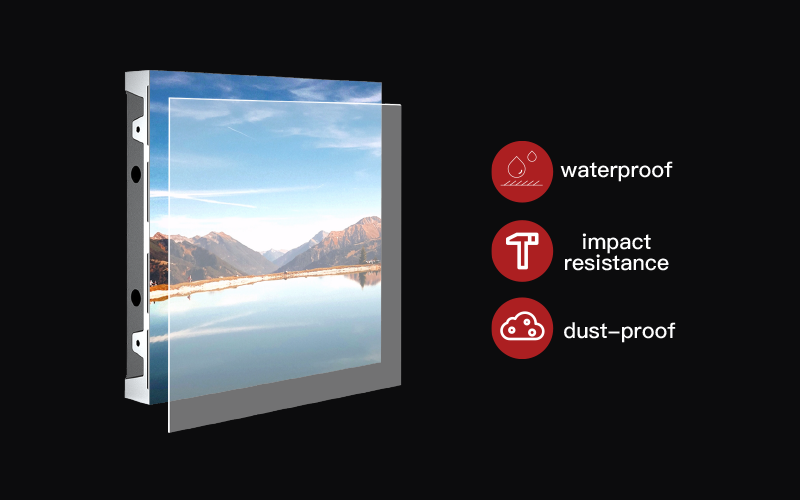

Panels in GBO modules have better viewing angle, having a level of waterproof and impact resistence.
|Module Size(W x H mm)||240x240||240x240||240x240||240x240|
|Panel Size(W x H mm)||480x480||480x480||480x480||480x480|
|Cabinet Materials||Diecast Aluminum|
|Power Consumption(Max/Avg) W/㎡||650/216|
|Gray Scale||≤14 bits|
1250㎡ P1.8/3/4 indoor led screen in Shanghai Platinum Hanjue Hotel

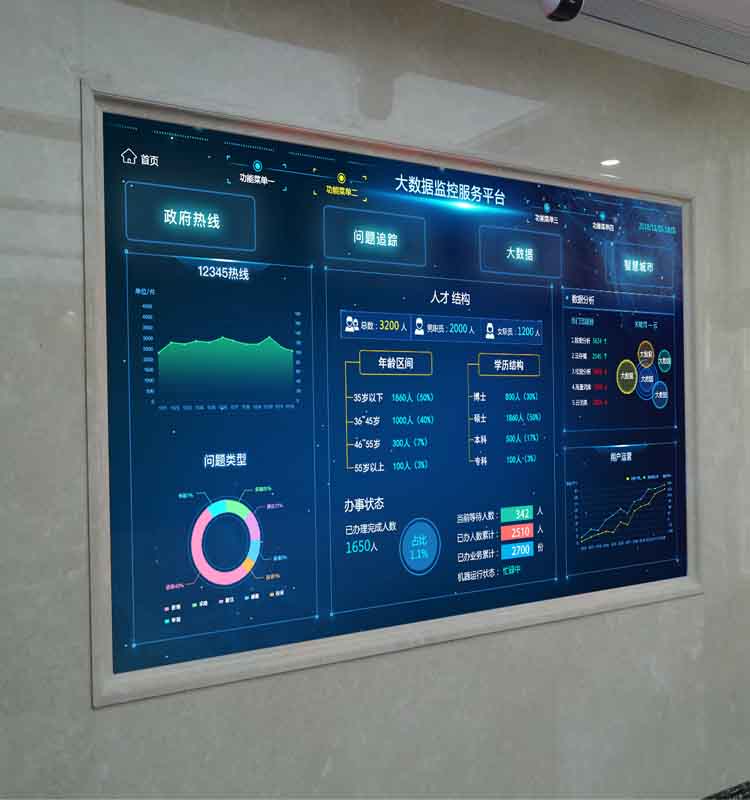

This is an indoor P1.2 fine pixel pitch led screen by zonepro led
