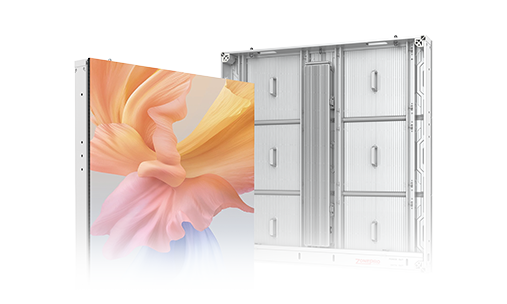

mediaCaptain is zonePro's new generation of hight brightness & low power consumpttion outdoor fixed led screen.Featured with bright LEDs, it can reach max 8500 nits brightness while staying at low power consumption of max 450w. The led screen panel weights only 28kg/㎡ and waterproof level is IP66. It supports both front and rear maintenance and has very good heat dissipation performance. It can meets the needs of various outdoor fixed installation led screen applications.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.

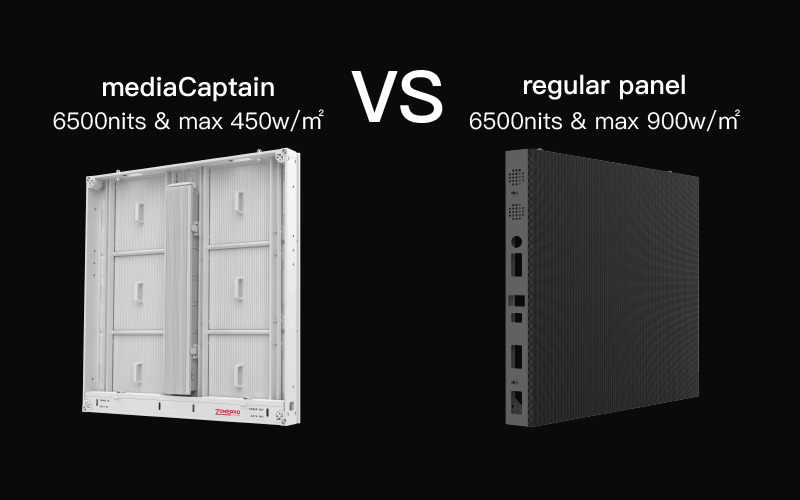

The panel adopts electronic circuit design of common anode with two different (best) power supply to red LED and green & blue LED, and good materials used such as highly effcient & bright LED and highly efficient PSU, the panel performs 8500 nit with max 450w/㎡, besides, there is 32% remaining power capacity in each panel.

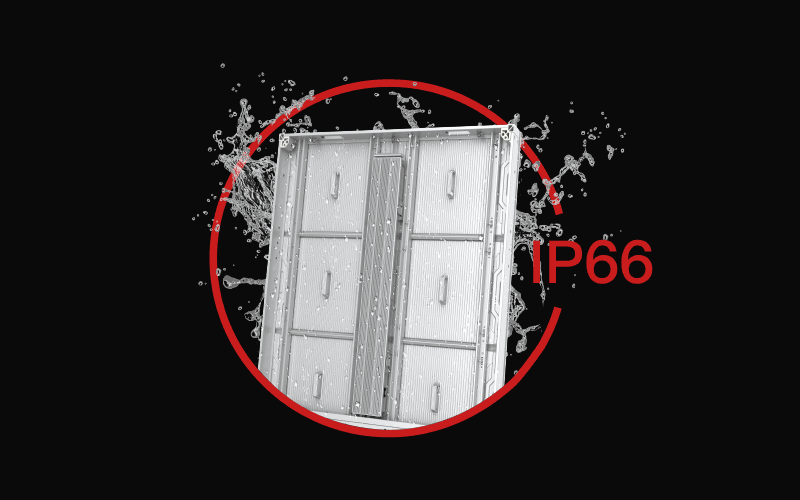

The led screen panel waterproof level is IP66/IP66.

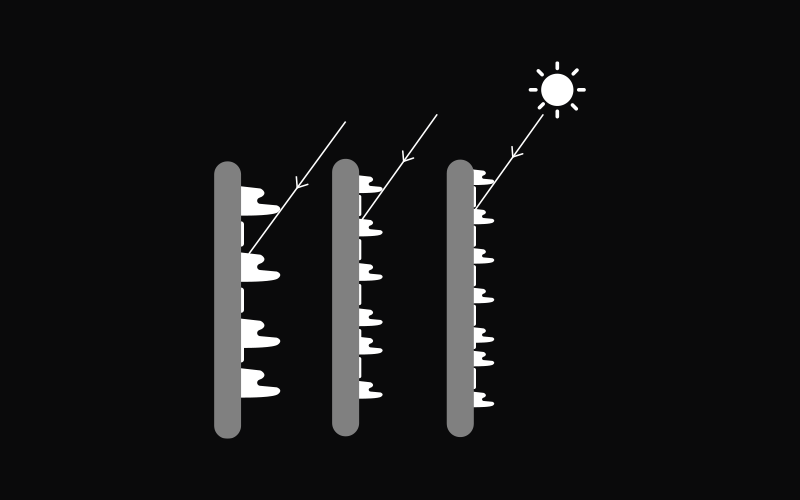

The led screen panel uses bright LEDs that bring up to 8500nits brightness, besides, there are long louvers on the module mask that is made very black, which contributes to clear and bright images on screen for outdoor use.

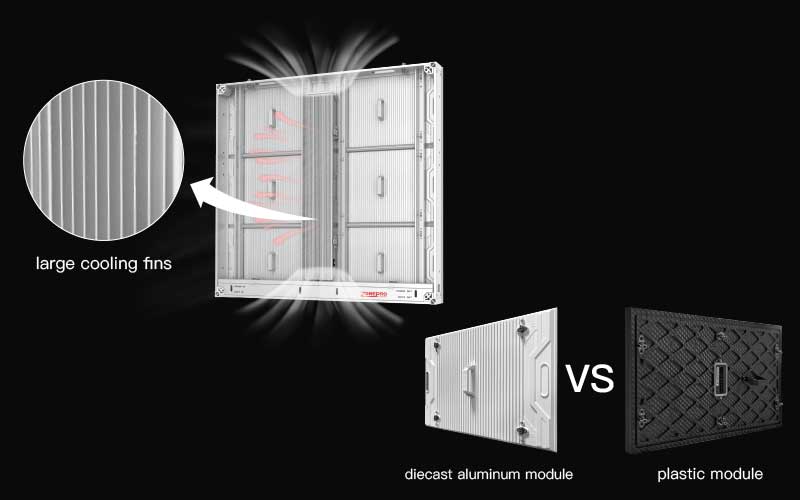

The led screen uses very good components, besides, we structurally design the best heat dissipation for the modules and PSU e.g, the module shell and powerbox are made of diecast aluminum with large heat fins.

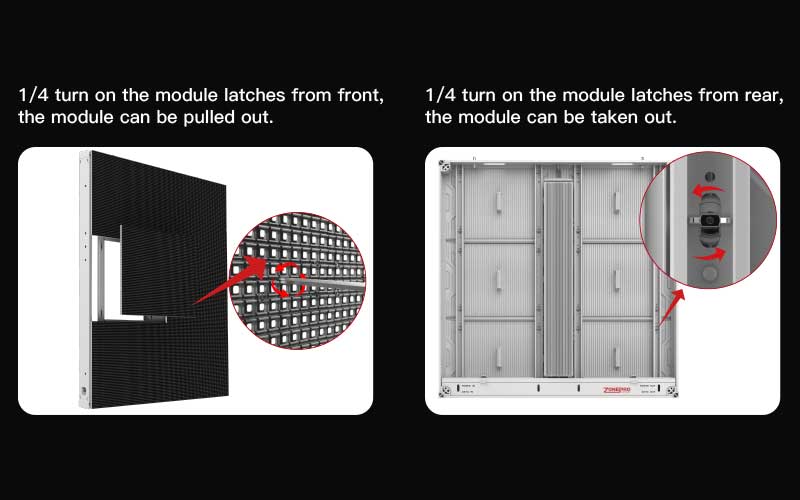

The led screen panel support fast front and rear mainytenance.
|Pixel Pitch (mm)||5||6.67||8||10|
|Module Size (W x H mm)||480x320||480x320||480x320||480x320|
|Pixel Density (pixels/m²)||40,000||22,500||15,625||10,000|
|Cabinet Size (WxH mm)||960x960||960x960||960x960||960x960|
|Cabinet Weight (kg/m²)||28||28||28||28|
|Gray Scale (bits)||≥14||≥14||≥14||≥14|
|Cabinet Material||Diecast Aluminum||Diecast Aluminum||Diecast Aluminum||Diecast Aluminum|
|Maintenance||Front / Rear||Front / Rear||Front / Rear||Front / Rear|
|Refresh Rate (Hz)||3840Hz||3840Hz||3840Hz||3840Hz|
|Contrast||8,000 : 1||9,000 : 1||10,000 : 1||11,000 : 1|
|Power Consumption (W/m²)||650 / 215||450 / 150||450 / 150||450 / 150|

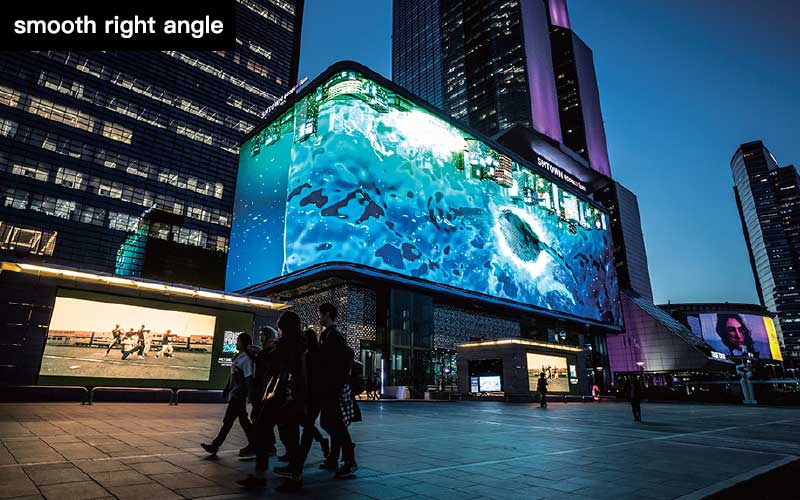

This screen is a P8 outdoor media led screen in Bangkok,Thailand. It is a right-angled led screen and screen size is L.32.64 x H8.64, total 282 sqm.
In 2019,zonepro Installed 34 sets of outdoor P10 billboard screen in Bangkok Suvarnabhumi International Airport.Each screen is 40sqm ,and we installed 34 sets ,total 1360 sqm.
zonePro successfully installed two outdoor billboard led screen in Thailand.The the horizontal screen is outdoor P8 and screen size is 28.8m(W) x 12.8m (H) ,368sqm.The vertical screen is outdoor P10 and screen size is 14.6m(W) x 54.5m (H) ,795sqm.
