ZonePro indoor and outdoor interactive floor screen covers from P1.5 to P6.25, with high sensitivity & intelligent interactive experience and super strong load-bearing capacity. floorPad can be fast front and rear maintained and has 360 degree viewing angle, it can be widely used in a lot of indoor and outdoor applications.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

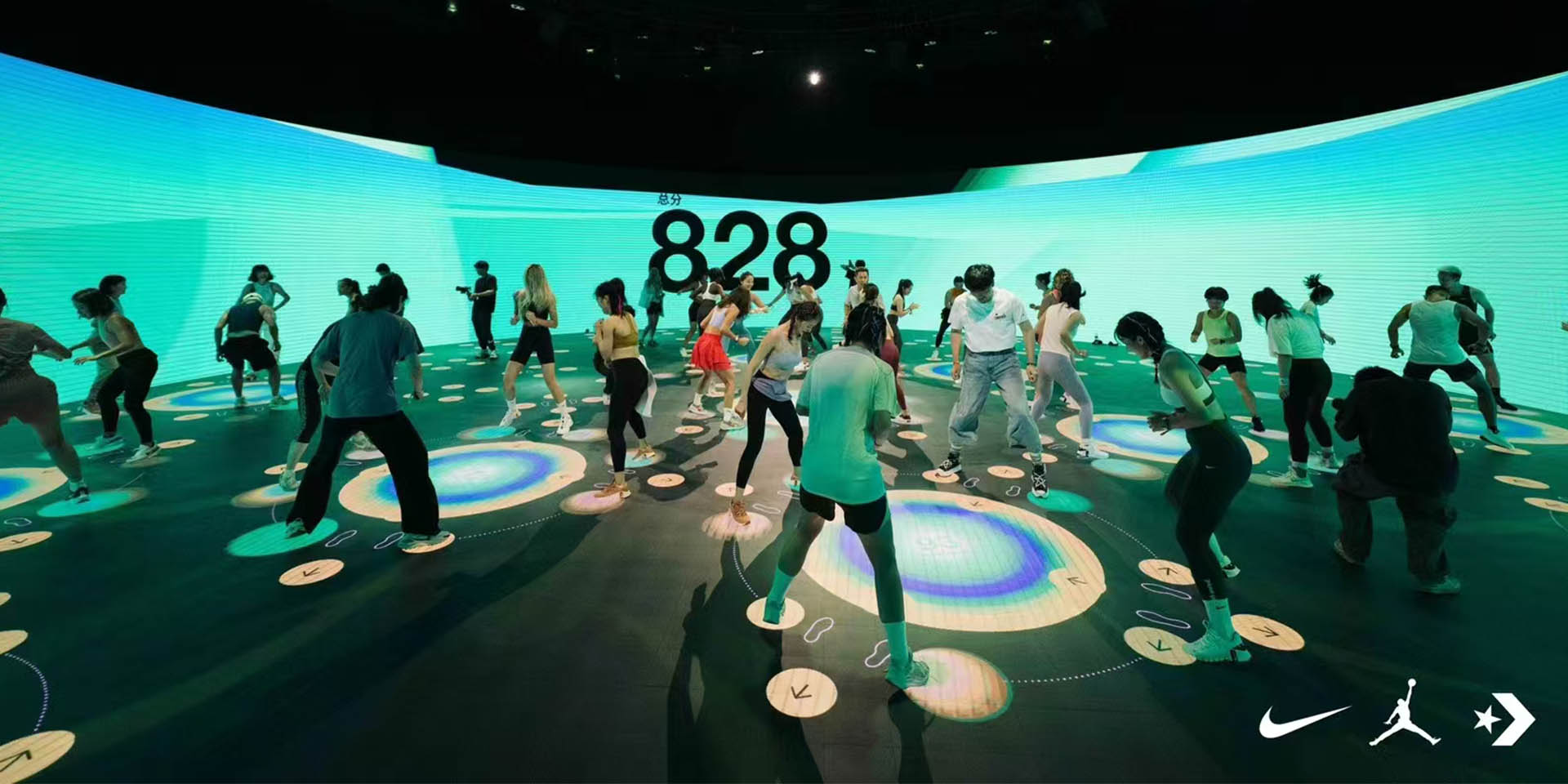

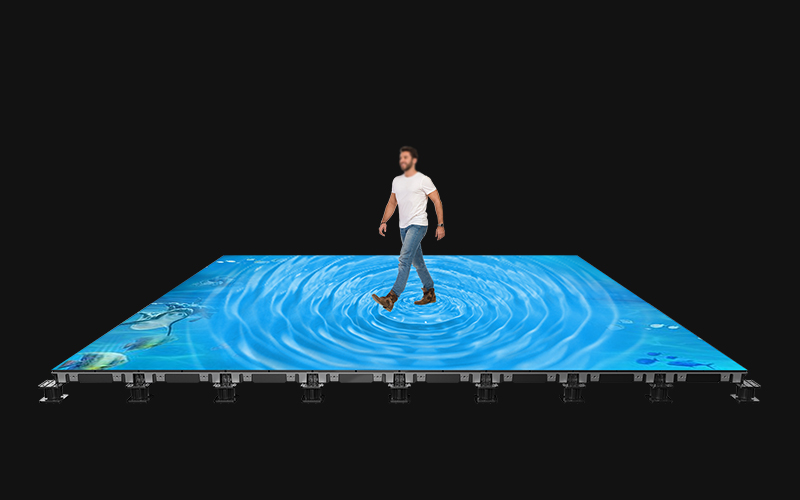

Independently developed interactive system, with built-in laser sensor and MCU control chip, it brings super high sensitivity and shorter response time.This system comes with a number of interactive games.

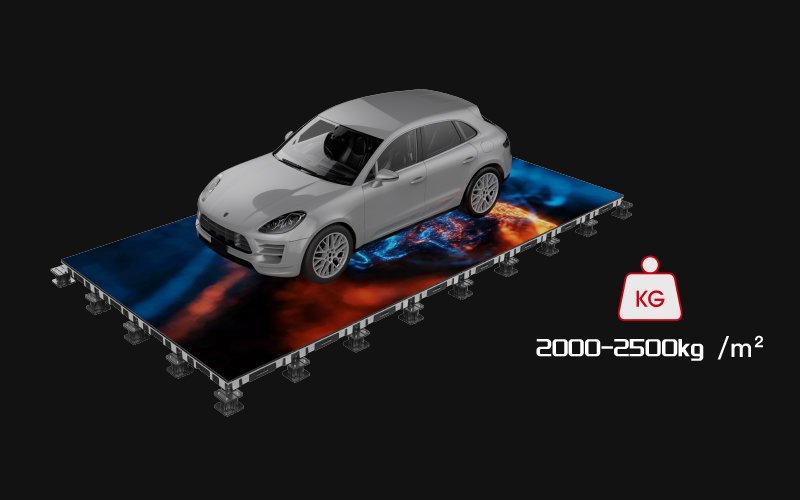

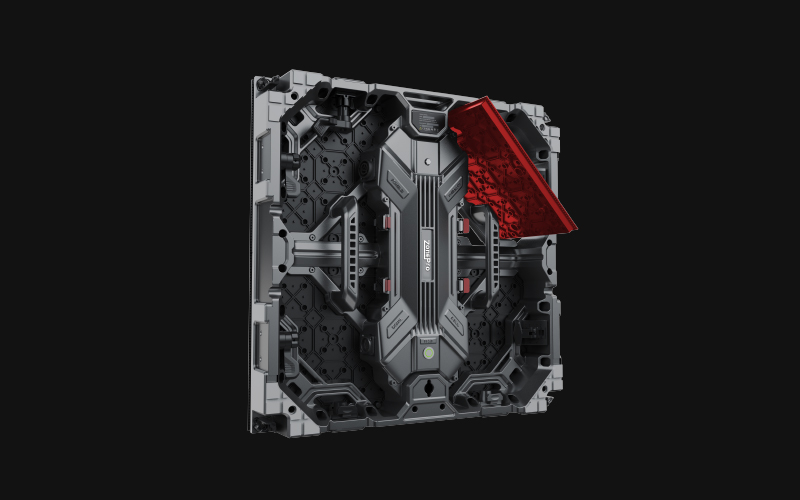

Die-casting aluminum chassis and frame supported structure design, its loading capacity reaches 2000-2500kg /m².

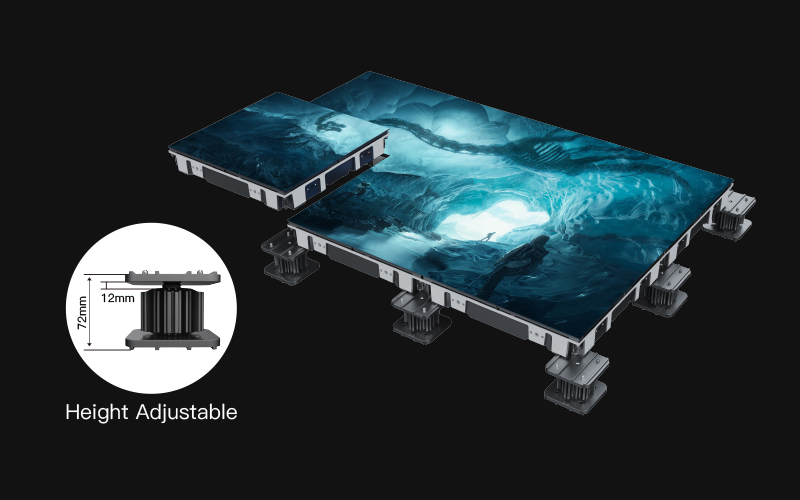

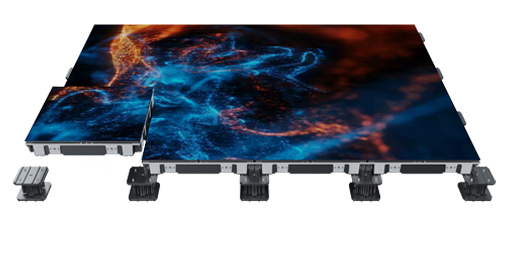

Customized metal feet and height adjustable, it can be widely applied to uneven grounds and installed quickly.
Magnet module, fast and easy front maintenance.

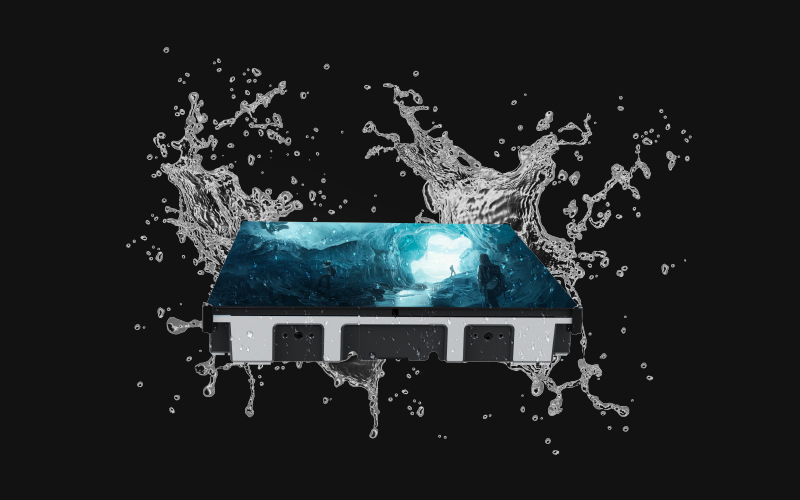

IP65 waterproof level, module corner protection and module scratch-resistant make it more reliable in outdoor environment.

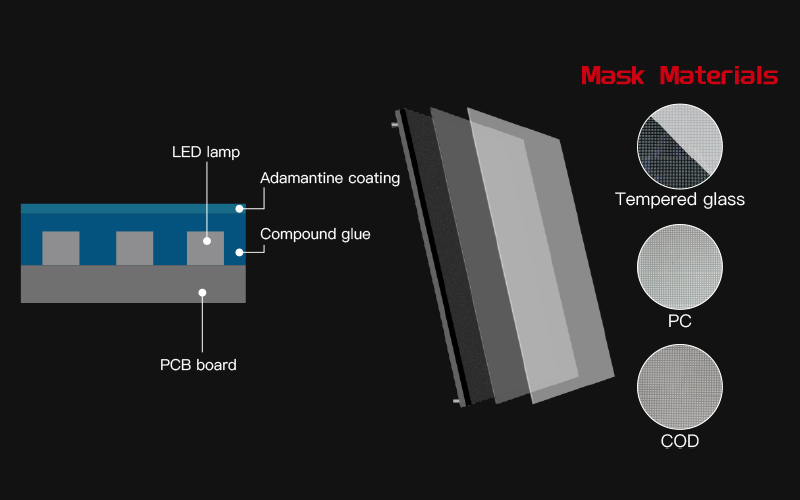

Module adopts COD technology and module surface is black matte type, and it brings better color consistency performance, high intensity and better resistance to high and low temperatures.

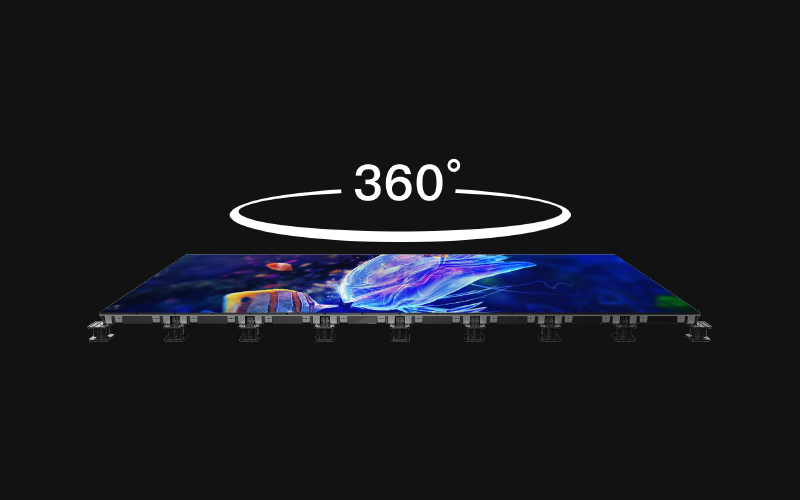

360° viewing angle brings excellent viewing epxerience for audiences from any angle.

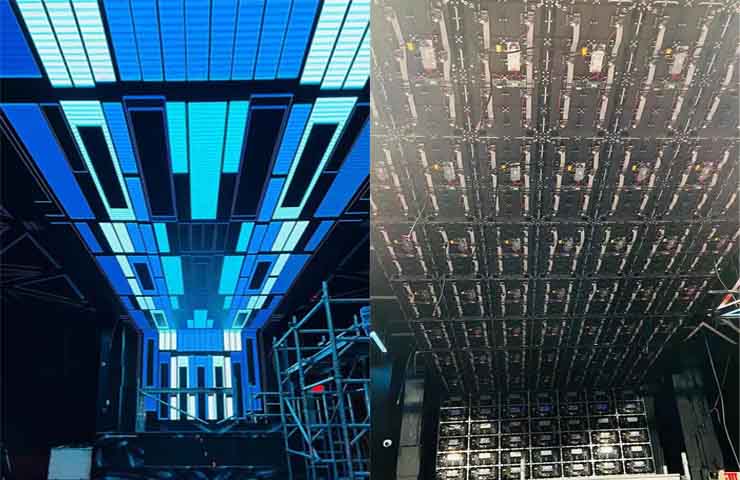

It is versatile to be applied to floor screen, stacking and ceiling mounted installtion, which meets the various application requirements.
| Pixel Pitch (mm) | P1.56 | P1.86 | P1.95 | P2.5 | P2.6 | P2.97 | P3.9 | P6.25 |
| LED Configuration | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1415 | SMD1921 | SMD2727 |
| Pixel Density (pixels/㎡) | 409,600 | 287,296 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 | 25,600 |
| Brightness (cd/㎡) | 700-1000 | 700-1000 | 700-1000 | 700-1000 | 700-1000 | 1000-2800 | 1000-2800 | 1000-2800 |
| Module Size (W x H mm) | 250x250 | |||||||
| Resolution | 160x160 | 134x134 | 128x128 | 100x100 | 96x96 | 84x84 | 64x64 | 40x40 |
| Panel Size (W x H mm) | 500x500 | |||||||
| Panel Weight (kg/㎡) | 11.5kg | |||||||
| Cabinet Material | Diecast Aluminum | |||||||
| Power Consum (W/㎡) | 800/270 | |||||||
| Refresh Rate | 3840Hz | |||||||
| Gray Scale | 14bits | |||||||
