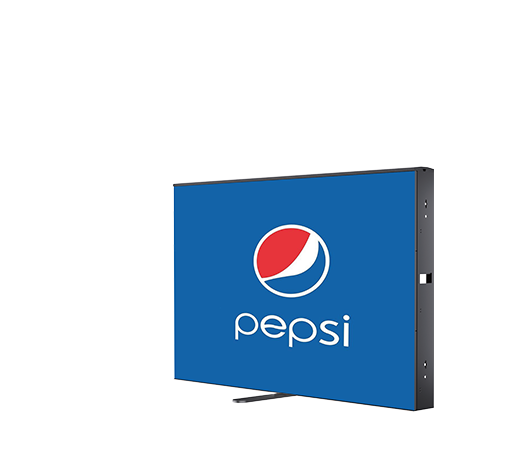

SPA-Perimeter Ads Panel

SPA (perimeter banner) SPA (perimeter banner)

SPA (perimeter banner)

Perimeter Ads Panel

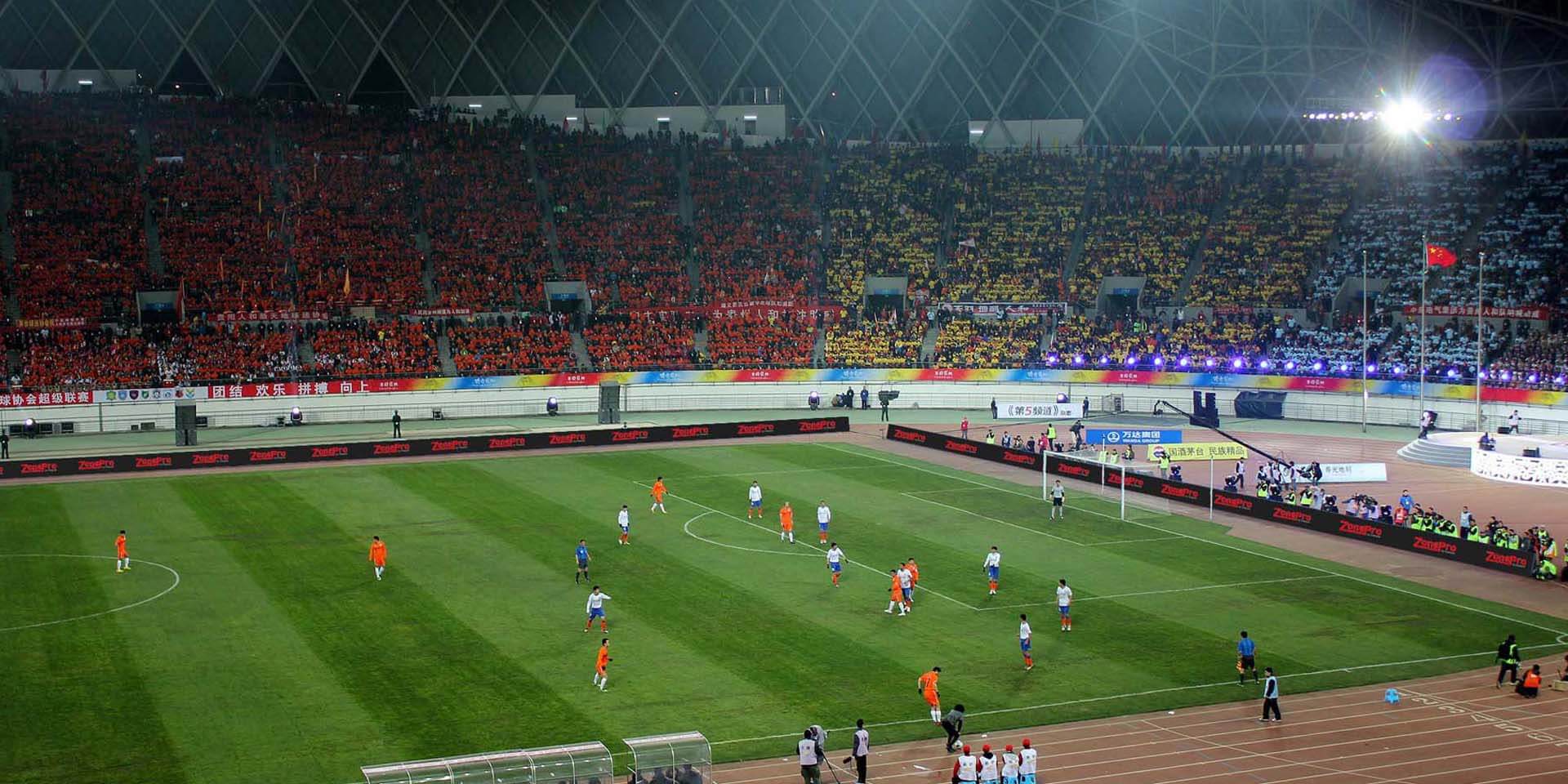

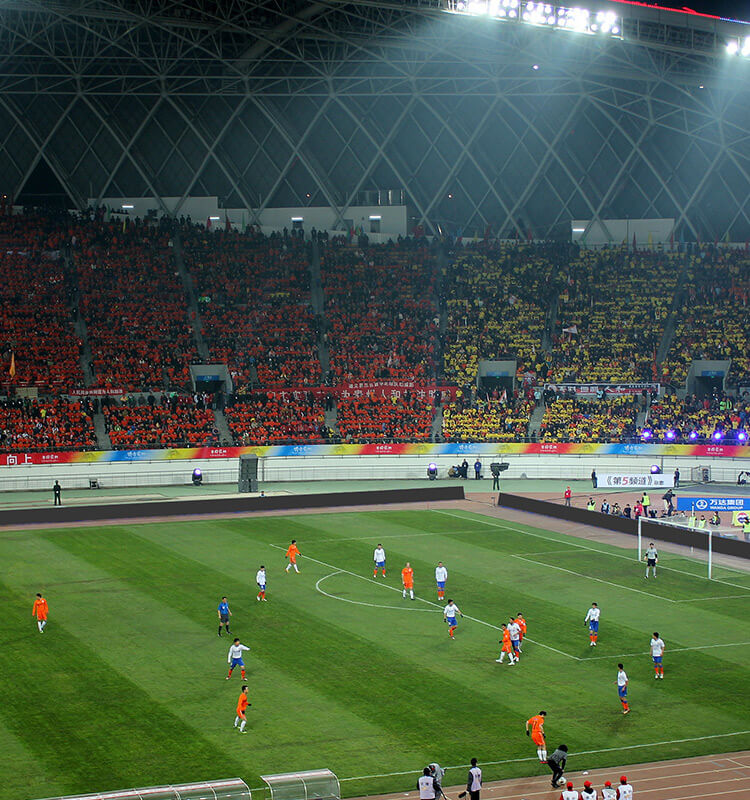

ZonePro perimeter display is reliable and high intensity ,and offers LED solutions to all kind of sports activities.


SPA (perimeter banner)

Message feedback

Hi Sir/Madam,


Thank you very much for your interest in our products!


Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review

your submitted info and email the catalog to you.


Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our

customers or potential customers. This is to best respect our work and effort to design and make this product

and its catalog.


Thanks very much for your understanding.


                                                                                                                                     ZonePro Team

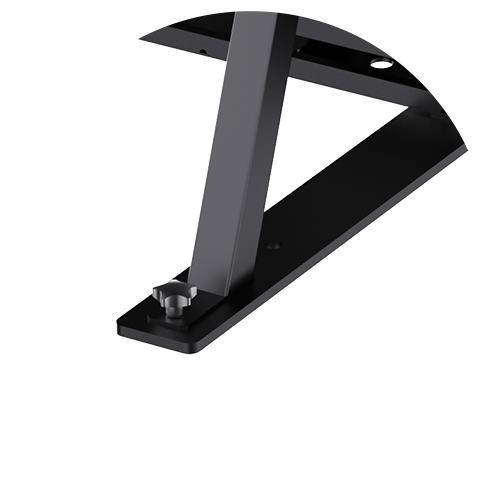

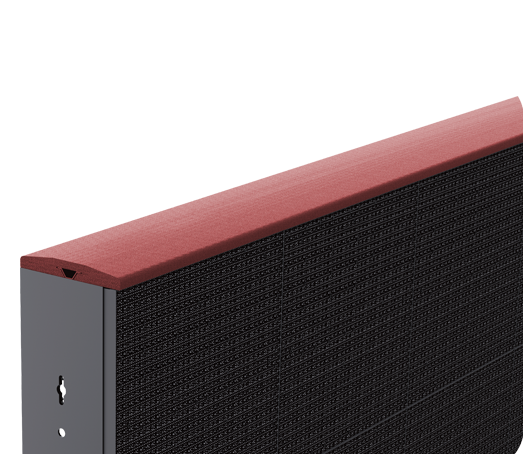

Protective, Robust & Lasting

Specs

ITEMSPA-6SPA-8SPA-10
LEDSMD2727SMD2727SMD3535
Pixel Pitch (mm)6.67810
Module Resolution48x4840x4032x32
Module Size (WxH mm)320x320
Module Quantity (WxH)5x3
Cabinet Resolution240x144200x120
160x96
Cabinet Size (WxH mm)1600x960

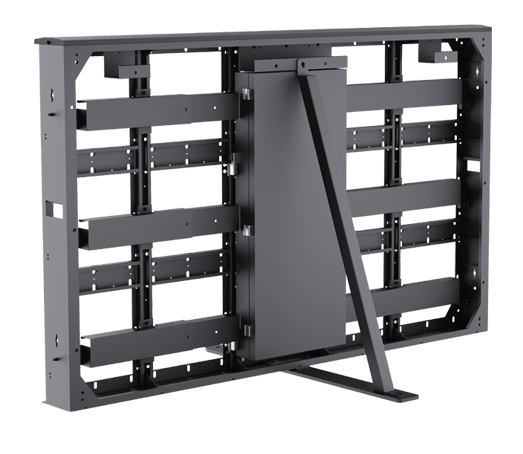

CabinetSheet Aluminum
Weight (kg/m²)37

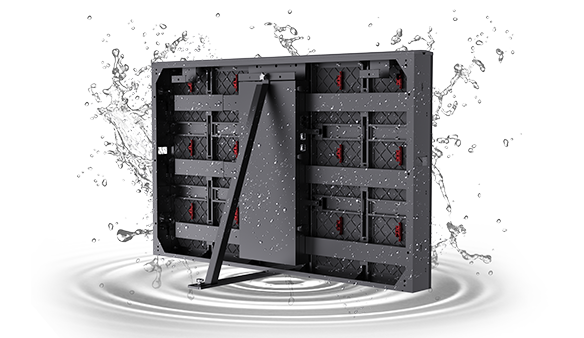

Ingress ProtectionIP65/IP54
Refresh Rate (Hz)7,680-15,360
Brightness (nit)6,000-10,000
View Angle (H./V.)120°/ 106°
Contrast Ratio8,000:19,000:110,000:1
Power Consumption (W/m²)600/200

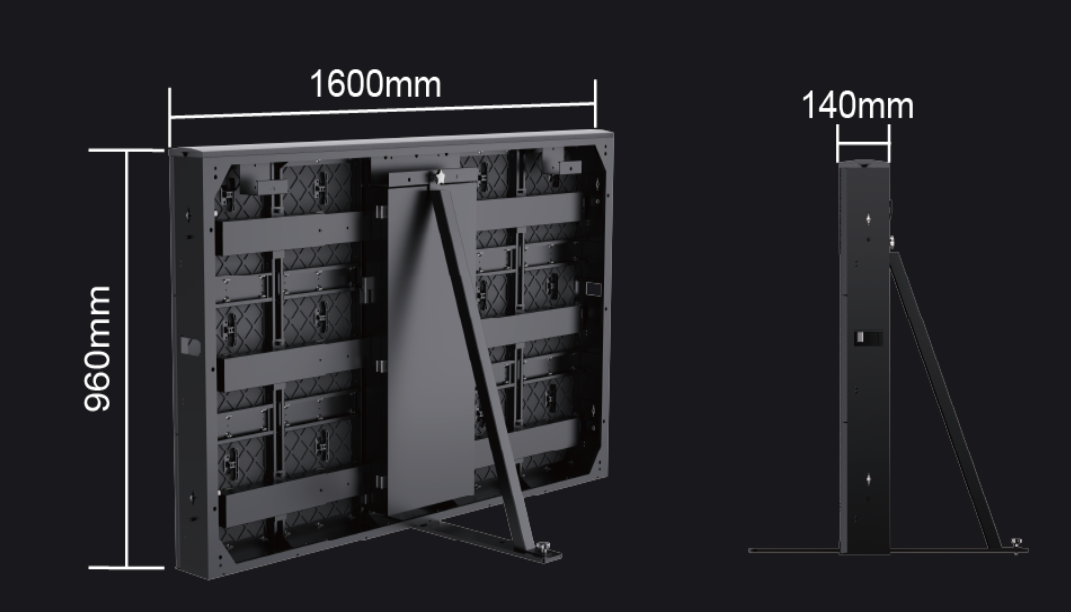

Dimensions
