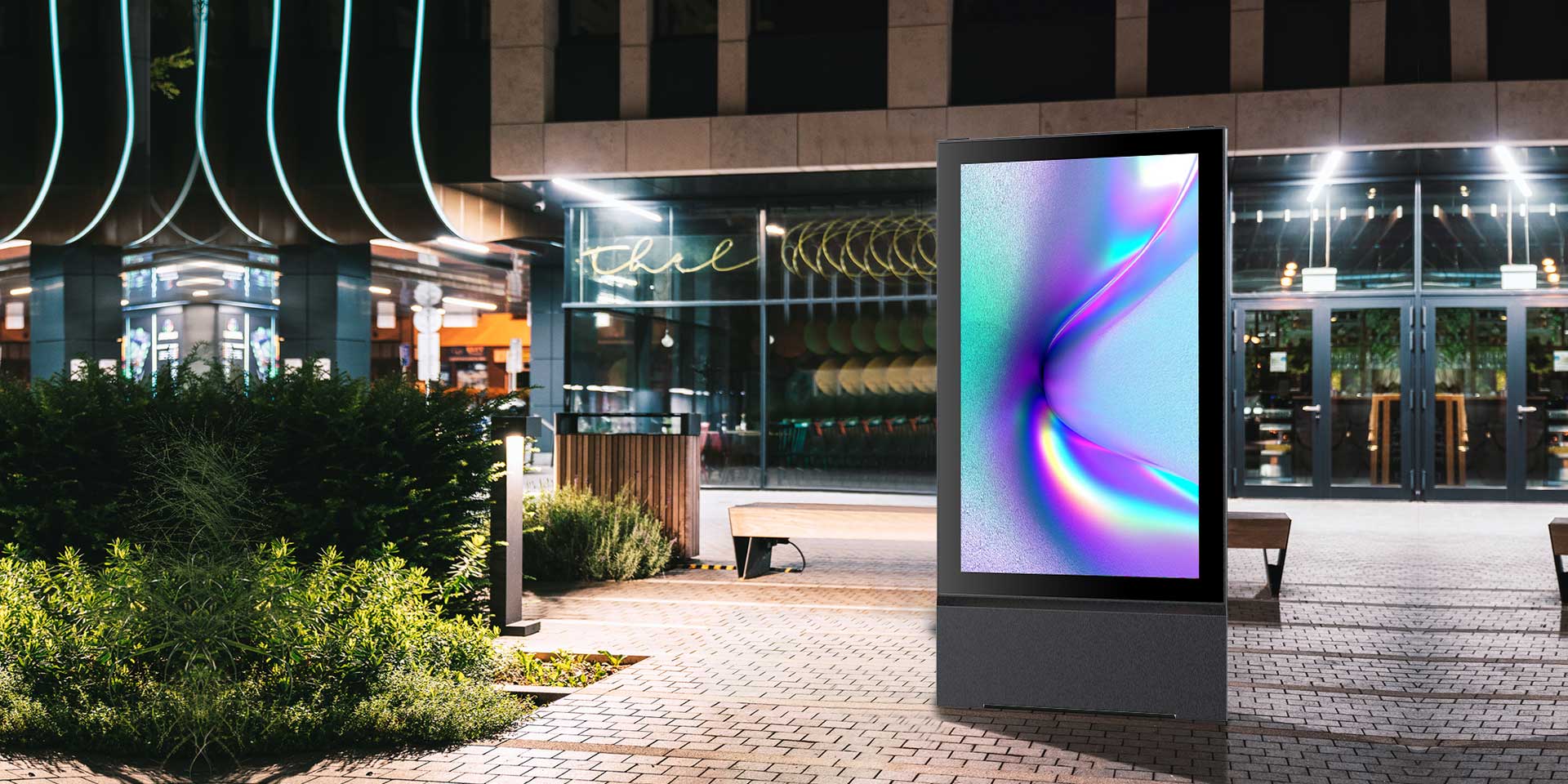

MIO is designed and built for real outdoor applications. It is easy to install without extra bracket and can be managed at a close distance easily. With Novastar cloud and APP, multiple kiosks can be smart & efficiently managed remotely. It saves your time and labor cost to change ad of traditional sign and make sure the latest ad and info can reach your customer as soon as possible.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.

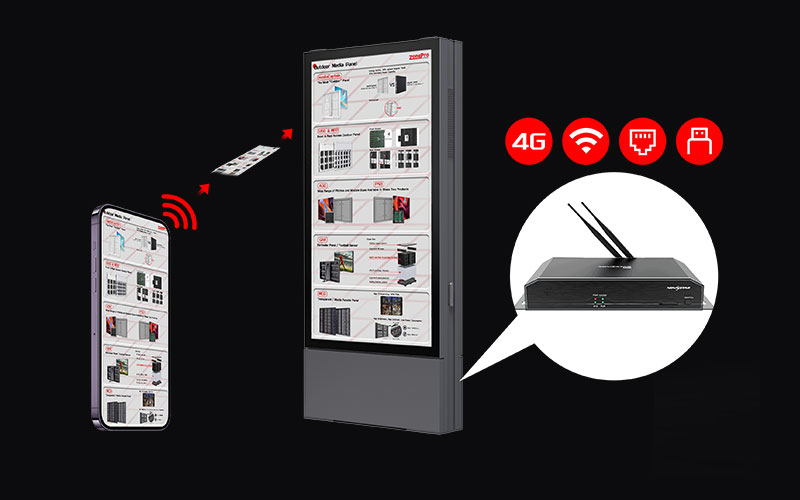

The kiosk is equipped with a media player (combination of single-chip & simplified processor) with accesses of 4G / 5G, WiFi, internet, USB, HDMI... A smart phone can connect to the WiFi with built-in hotspot of the media player and can manage it via an APP of viplex.

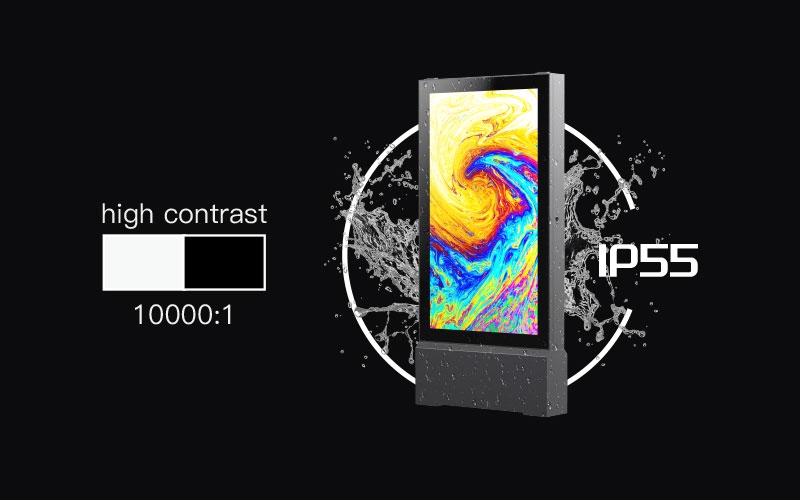

High contrast and IP55

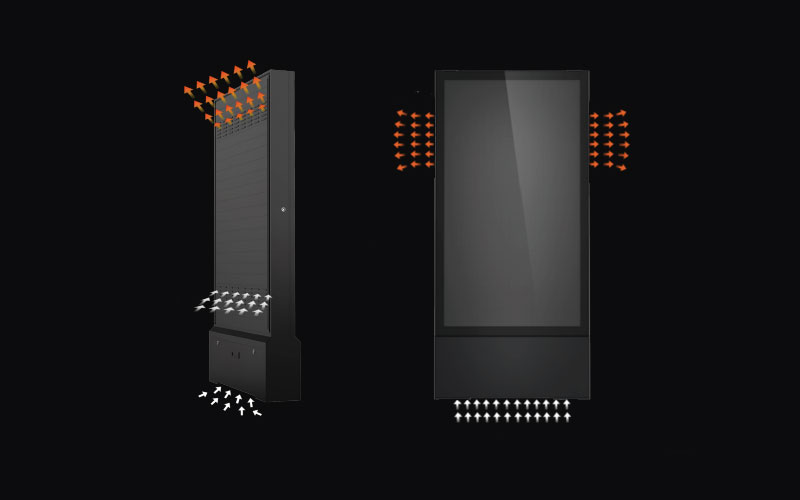

excellent heat dissipation

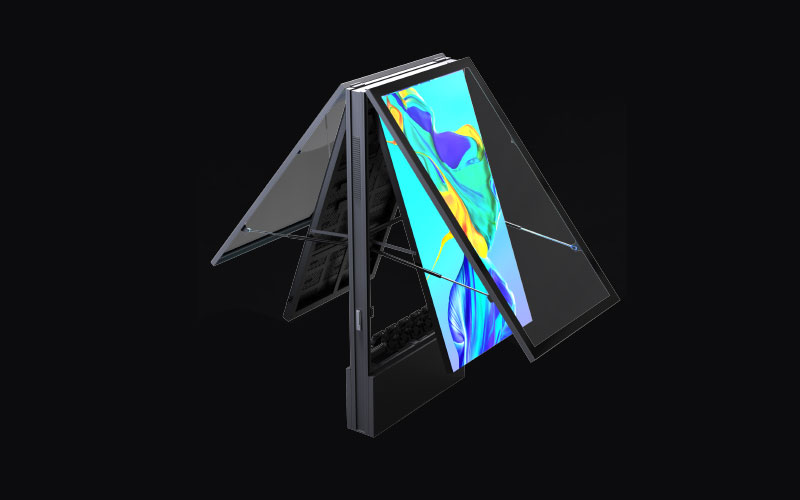

Modular design, fast maintanance to module,PSU and other parts.

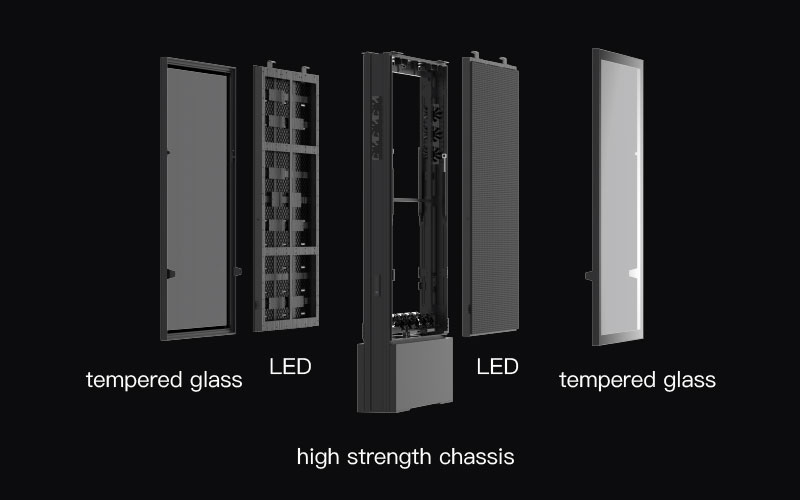

With high strength chassis and tempered glass protection, MIO has excellent impact resistance.

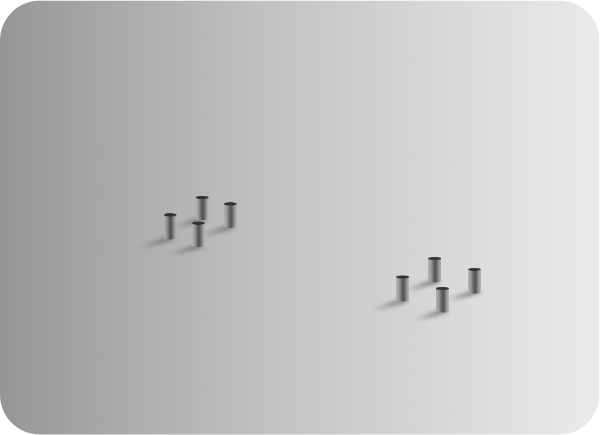

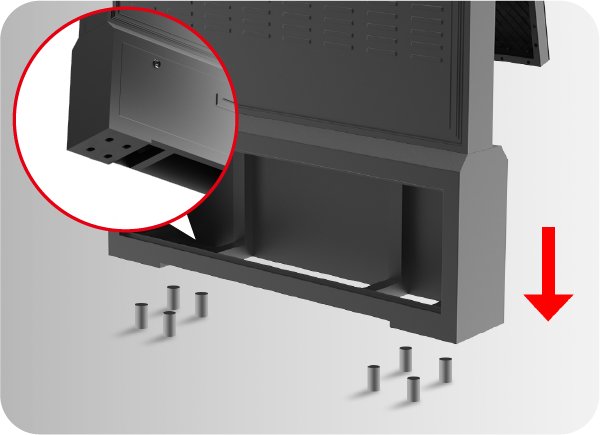

1. install eight M20 explosive bolts into the ground.
2. move the kiosk and make it rideon the M20 bolts, then fix the screws.
|Pixel Pitch (mm)||1.8605||2.5||3.076||4.0||3.91||4.81|
|Module Size (W x H mm)||320x160||320x160||320x160||320x160||250x250||250x250|
|Pixel Density (pixels/m²)||288,895||160,000||105,626||62,500||65,536||43,264|
|LED Screen Size||960x1760mm (W x H)||1000x1750mm (W x H)|
|LED Screen Resolution||516x946||384x704||312x572||240x440||256x448||208x364|
|Total Size||single side: 1140x2230x183mm double side: 1140x2230x228mm|
single side: 1180x2380x183mm
|Cabinet Weight||single side, 215kg/pc; double side, 285kgs/pc|
single side, 230kg/pc;
double side, 300kgs/pc
|Refresh Rate (Hz)||3840Hz||3840Hz||3840Hz||3840Hz||3840Hz||3840Hz|
|Power Consumption (W/m²)||670 / 200||670 / 200||670 / 200||670 / 200||670 / 200||670 / 200|
In 2019,zonepro Installed 34 sets of outdoor P10 billboard screen in Bangkok Suvarnabhumi International Airport.Each screen is 40sqm ,and we installed 34 sets ,total 1360 sqm.
zonePro successfully installed two outdoor billboard led screen in Thailand.The the horizontal screen is outdoor P8 and screen size is 28.8m(W) x 12.8m (H) ,368sqm.The vertical screen is outdoor P10 and screen size is 14.6m(W) x 54.5m (H) ,795sqm.
