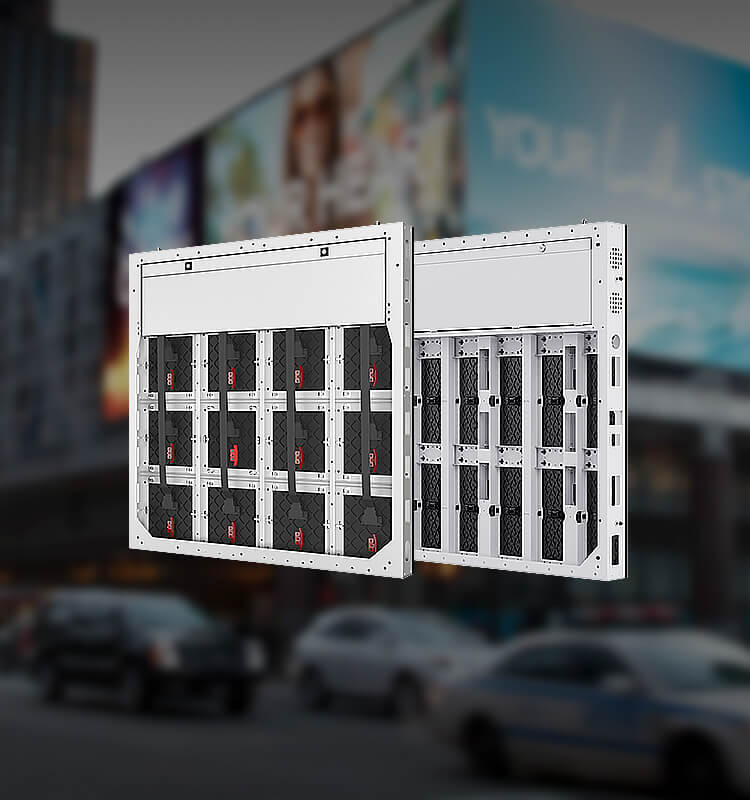

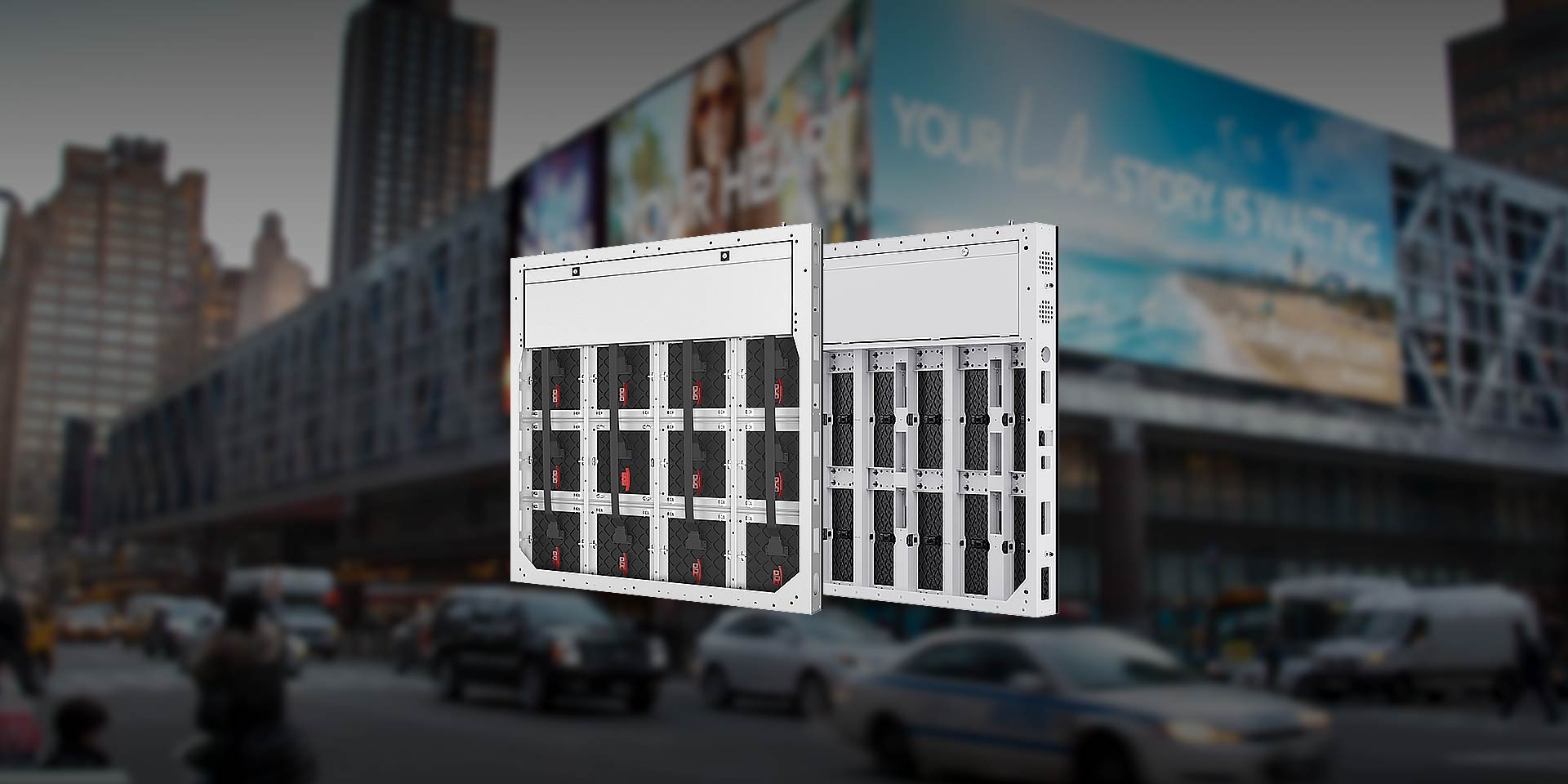

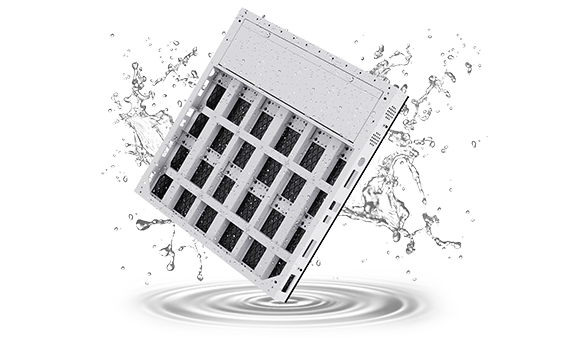

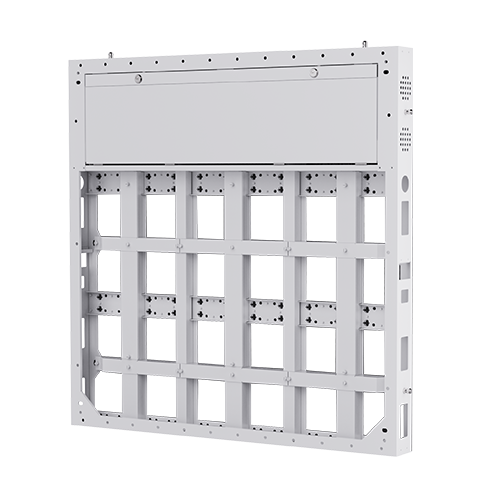

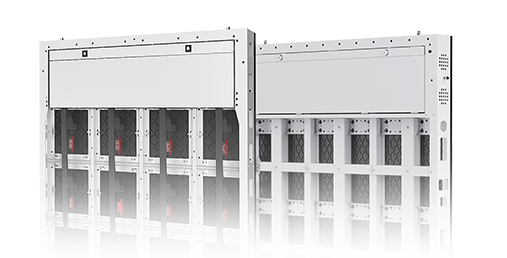

MFO&USO are an outdoor media panels. Both of these two panel are made of sheet aluminum,more strong and have better heat dissipation.Front IP67 waterproof level ,internal connection and cabling protected make it more reliable in outdoor environment.
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
The panel uses bright LED and its masks are designed and built long louvers that shade LEDs from the Sun, which brings high contrast to the panel.
Customers can choose high speed IC drivers and this will help the panel obtain a max graysale of 14 bits or even 16 bits, then the screen is able to perform as rich details as what the content has.
Customers can choose high speed IC drivers and this will help the panel obtain a max refresh of 3840Hz or even 7680Hz, then the screen is able to perform best smooth.
Quatro panels will not discolour on full white even under extreme conditions.

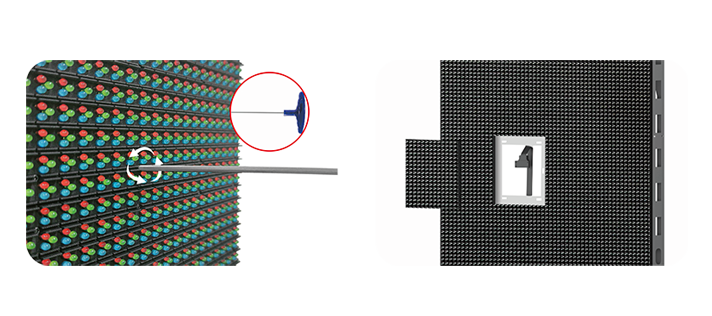

1/4 turn on the module latches from front, the module can be pulled out.

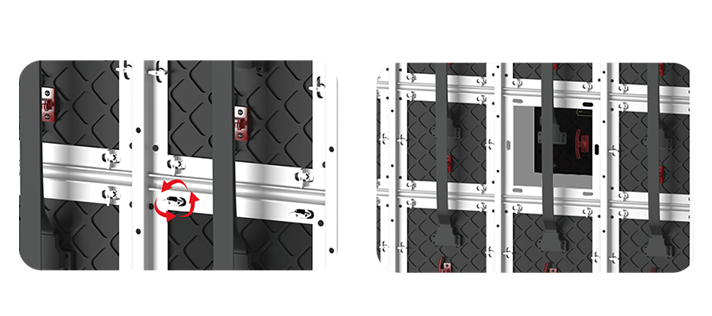

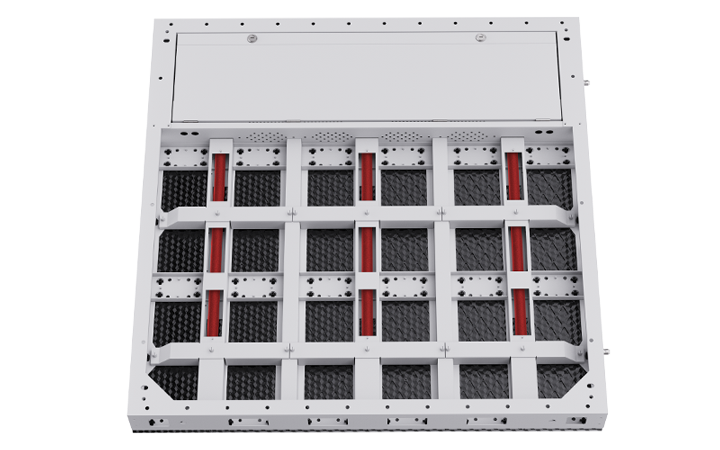

1/4 turn on the module latches from rear, the module can be taken out.
|LED||SMD 3 IN 1||DIP 347||DIP 347|
|Pixel Pitch (mm)||4.44||6.67||8||10||10||16.67|
|Module Size (WxH mm)||320x320||320x320||320x320||320x320||200x400||200x400|
|Pixel Density (pixels/㎡)||50,652||22,477||15,625||10,000||10,000||3,600|
|Cabinet Size (WxH mm)||1280x1280||1200x1200|
|Cabinet Material||Sheet Aluminum|
|Refresh Rate (Hz)||≥1980-3840||≤3840|
|View Angle (H./V.)||140° /120°||120° /120°|
|Contrast Ratio||6,000 : 1||8,000 : 1|
|Max. Power Consumption||600-800W/㎡||360W/㎡|
|Avg. Power Consumption||266W/㎡||120W/㎡|
This screen is a P8 outdoor media led screen in Bangkok,Thailand. It is a right-angled led screen and screen size is L.32.64 x H8.64, total 282 sqm.
