FSO is an outdoor media panel with sheet metal cabinet,covering from outdoor P2.9 to P16.High brightness level,high contrast and IP65 waterproof make it an ideal choice for outdoor application.
Hi Sir/Madam,
Thank you very much for your interest in our products!
Please kindly fill in your info into the below blank before having this catalog. ZonePro team will soonest review
your submitted info and email the catalog to you.
Please excuse us for not being generous to allow a free download on catalog as we mean to deliver this to our
customers or potential customers. This is to best respect our work and effort to design and make this product
and its catalog.
Thanks very much for your understanding.
ZonePro Team

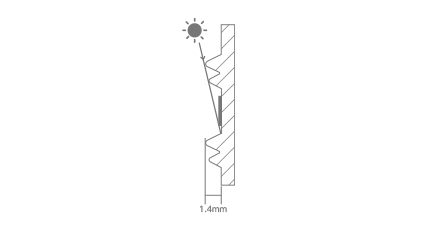

The panel uses bright LED to bring brightness up to 10,000nits, besides, long louver on mask is used to shade LEDs from the sun and it contributes to high contrast.

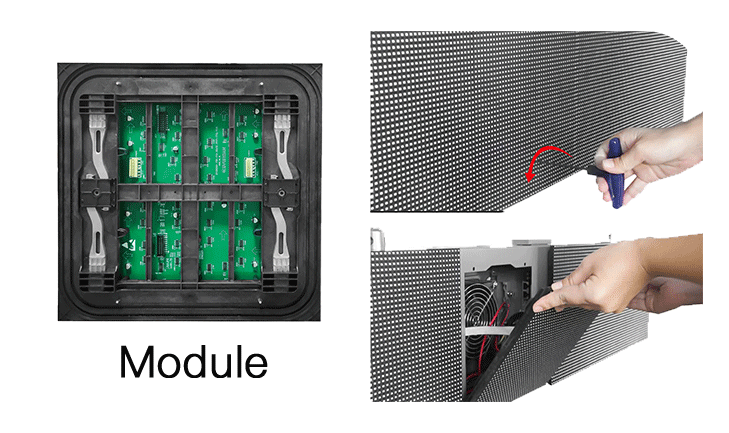

The panel can be easily accessible from front and rear. From front, using an allen key, 1/4 turn on two positions in a module, the module can be removed.

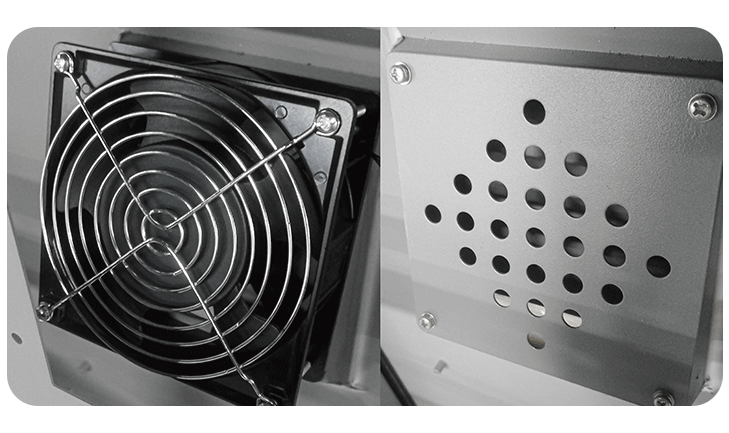

Cooling fans and heat emission holes can rapidly dissipate heat, reducing power consumption, which brings longer product service life.

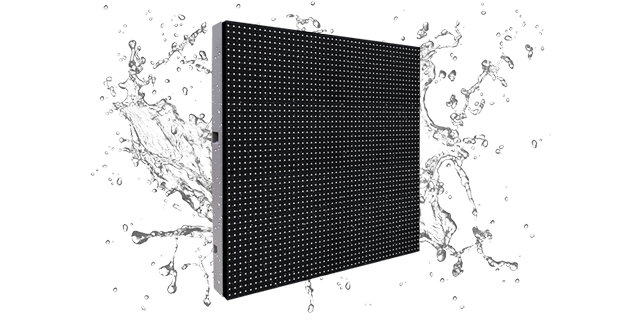

IP65/IP54 withstands extreme weather conditions.
| ITEM | FSO-3.9 | FSO-4.8 | FSO-6 | FSO-8 | FSO-10S | FSO-10D | FSO-16D |
| LED | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | SMD 3 IN 1 | DIP 347 | DIP 347 |
| Pixel Pitch (mm) | 3.91 | 4.81 | 6.67 | 8 | 10 | 10 | 16 |
| Module Resolution | 64x64 | 52x52 | 48x48 | 40x40 | 32x32 | 32x32 | 20x20 |
| Module Size (WxH) | 250x250mm | 250x250mm | 320x320mm | 320x320mm | 320x320mm | 320x320mm | 320x320mm |
| Pixel Density (pixels/m²) | 65,536 | 43,264 | 22,477 | 15,625 | 10,000 | 10,000 | 3,906 |
| Cabinet Resolution (WxH) | 256x256 | 208x208 | 144x144 | 120x120 | 96x96 | 96x96 | 48x48 |
| Cabinet Size (WxH) | 1000x1000mm | 1000x1000mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Cabinet Weight (kg/m²) | 50 | 50 | 50 | 50 | 50 | 50 | 48 |
| Cabinet Material | sheet metal | sheet metal | sheet metal | sheet metal | sheet metal | sheet metal | sheet metal |
| Ingress Protection | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Maintenance | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Refresh Rate (Hz) | ≥1920-3840 | ≥1920-3840 | ≥1920-3840 | ≥1920-3840 | ≥3840 | ≥3840 | ≥3840 |
| Brightness (nits) | 5,000-8,500 | 5,000-8,500 | 5,500-9,500 | 6,500-10,000 | 7,000-10,000 | 8,500-10,000 | 6,000-10,000 |
| View Angle (H./V.) | 120° /120° | 120° /120° | 120° /120° | 120° /120° | 120° /120° | 120° / 60° | 120° / 60° |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 | 3,000:1 | 3,000:1 |
| Max. Power Consumption | 600-800W/m² | 600-800W/m² | 600-800W/m² | 600-800W/m² | 600-800W/m² | 360W/m² | 360W/m² |
| Avg. Power Consumption | 266W/m² | 266W/m² | 266W/m² | 266W/m² | 266W/m² | 120W/m² | 120W/m² |
